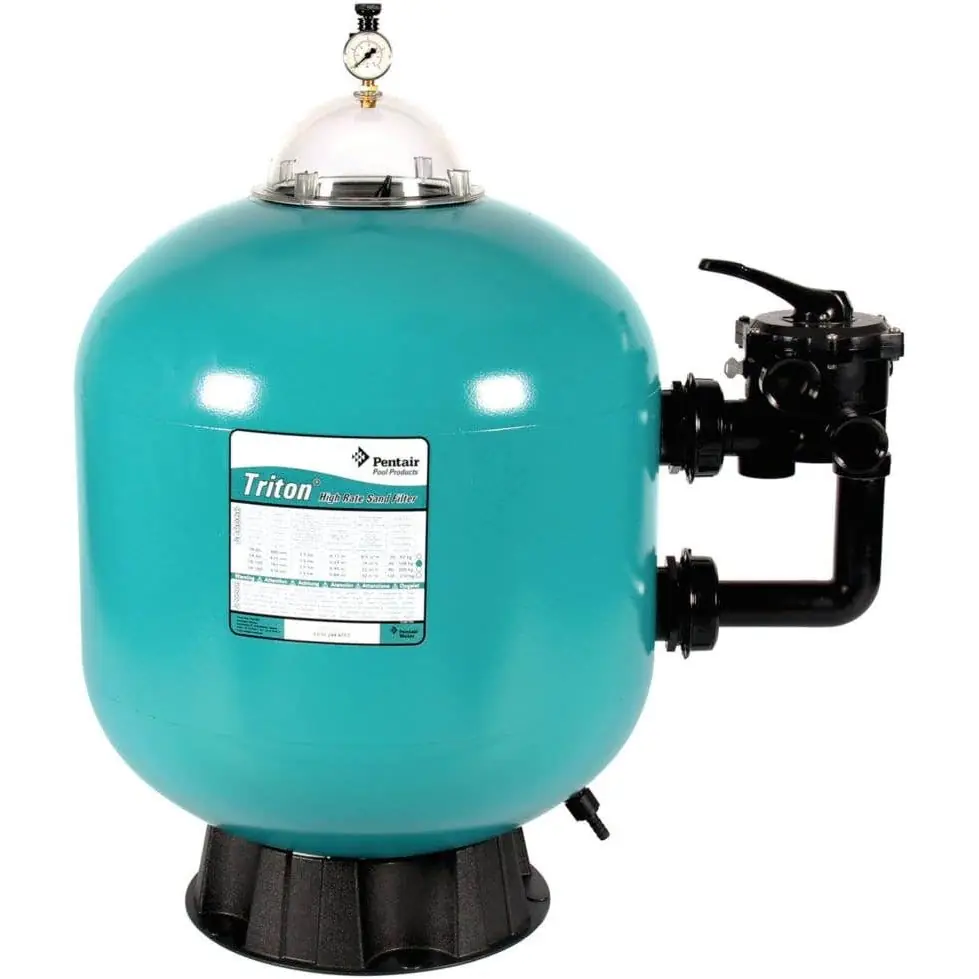

The Pentair Triton II TR60 24" Side Mount In-Ground Pool Sand Filter is engineered to deliver efficient and dependable filtration for in-ground swimming pools. This filter is the result of over 40 years of product evolution and refinement, setting the industry standard for effectiveness, efficiency, and low-maintenance operation.
- Heavy-Duty Closure: Provides easy inspection and maintenance, featuring an easy-to-read pressure gauge with an air relief valve.
- Swing-Away Diffuser: Allows instant access to sand and all internal parts, facilitating quick servicing.
- Combination Sand and Water Drain: Simplifies servicing and winterizing processes.
- GlasLok™ Process: Creates a one-piece, fiberglass-reinforced tank with a UV-resistant coating, ensuring years of dependable, corrosion-resistant service.
- Threaded Internal Parts: All internal components are threaded for ease of maintenance.
- Threaded Bulkhead Connectors: Facilitate easier installation and service.
- Time-Proven Internal Design: Ensures that all water receives maximum filtration for crystal-clear results.
Technical Specifications:
- Filter Diameter: 610 mm (24 inches)
- Filtration Area: 0.29 m²
- Required Sand Weight: Approximately 147 kg (325 lbs)
- Flow Rate: 63 gallons per minute (GPM)
- Maximum Operating Pressure: 3.5 bars (50 psi)
- Maximum Operating Temperature: 50°C (122°F)
- Inlet/Outlet Size: 1.5 inches (38 mm)
Materials:
- Tank Construction: Fiberglass-reinforced composite with UV-resistant coating
- Internal Components: Threaded plastic parts for ease of maintenance
Dimensions:
- Height: 955 mm (37.5 inches)
- Width: 610 mm (24 inches)
- Depth: 610 mm (24 inches)
Compatibility Information:
- Valve Compatibility: Requires a side mount multi-port or push-pull backwash valve. Compatible valves include:
- Multi-port valves: 261173, 261049, 261050, 261055
- Side mount push-pull valve: 263064
Package Contents:
- Triton II TR60 sand filter tank
- All internal laterals
- Filter tank base
- Lid closure
- Air relief valve
- Pressure gauge
- User manual
