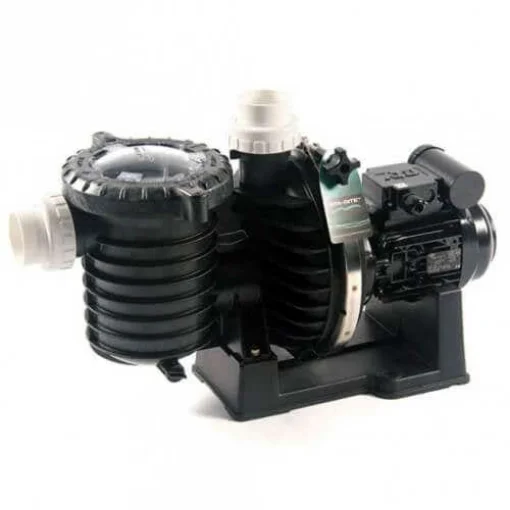

The Sta-Rite 5P6R Filtration Pump is engineered for high-performance operation in both residential and commercial swimming pools. Constructed with reinforced fiberglass, this pump offers exceptional durability and resistance to corrosion and temperature variations.
- Self-Priming Capability: Operates efficiently up to 5 meters above the water level, ensuring reliable performance.
- High-Strength Motor: Equipped with a Totally Enclosed Fan Cooled (TEFC) motor, it delivers consistent power and is designed for continuous, quiet operation.
- Corrosion Resistance: Suitable for both chemical and saltwater environments, depending on the model.
- Transparent Pre-Filter Lid: Allows for easy inspection of debris levels, facilitating prompt maintenance.
- Quick-Lockâ„¢ Cover Ring: Enables swift access to the pre-filter, reducing downtime during maintenance.
- High-Pressure Performance: Designed to handle higher pressures, making it suitable for pools requiring substantial water flow.
Technical Specifications
- Motor Protection: IP55-rated, ensuring durability and safety.
- Insulation Class: Class F, providing enhanced thermal protection.
- pH Range: 4 - 9, accommodating a wide range of pool water conditions.
- Maximum Air Temperature: 50°C, suitable for various environmental conditions.
- Maximum Water Temperature: 52°C, ensuring reliable operation under warm conditions.
- Connection Orifices: 2 inches (63 mm) in diameter, facilitating efficient water flow.
- Pre-Filter Diameter: 6 inches, providing ample capacity for debris collection.
Materials
- Pump Body: Reinforced fiberglass, offering strength and resistance to corrosion.
- Motor Shaft: Stainless steel, ensuring longevity and resistance to wear.
- Pre-Filter Lid: Transparent polycarbonate, allowing for easy visual inspection.
Dimensions and Weight
The Sta-Rite 5P6R series includes various models with different specifications. Below are the dimensions and weights for select models:
| Model | Power (HP) | Flow Rate (m³/h) | Weight (kg) | Dimensions (L x W x H in mm) |
|---|
| 5P6RD-1 | 0.75 | 14 | 12 | 580 x 320 x 320 |
| 5P6RE-1 | 1 | 17 | 15.5 | 580 x 320 x 320 |
| 5P6RF-1 | 1.5 | 22 | 17 | 580 x 320 x 320 |
| 5P6RG-1 | 2 | 26 | 19 | 580 x 320 x 320 |
| 5P6RH-3 | 3 | 31 | 24.5 | 580 x 320 x 320 |
Compatibility Information
The Sta-Rite 5P6R Filtration Pump is compatible with various pool systems, including both residential and commercial installations. Its corrosion-resistant design makes it suitable for use with chemical and saltwater pools, depending on the specific model chosen.
