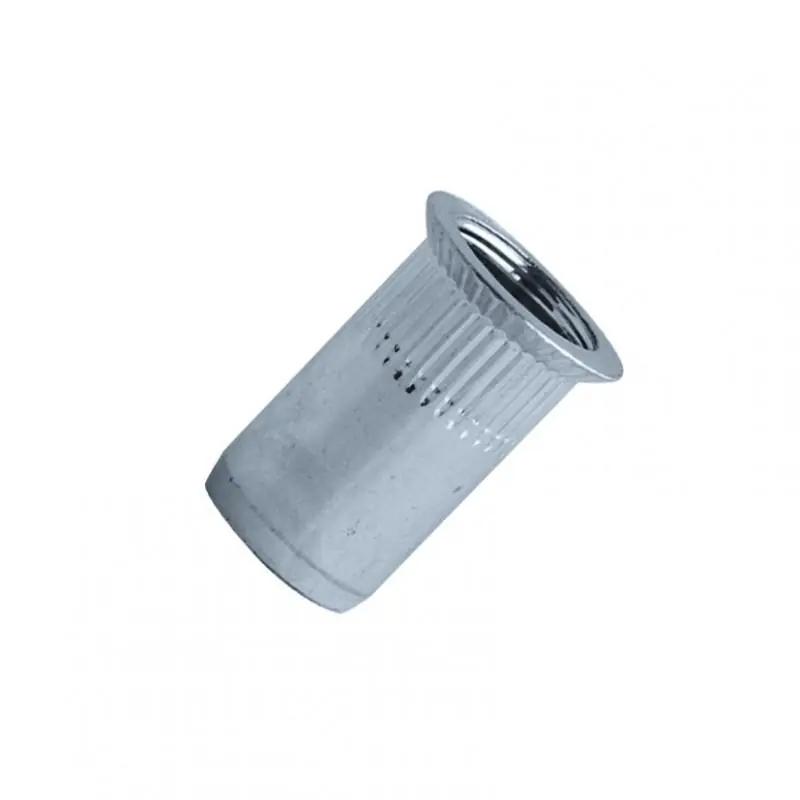

The Aluminium Flat Head Serrated Nut M4-30 is a self-clinching threaded stud designed for secure fastening in thin metal sheets. Manufactured by PEM®, this nut features a flush head that embeds into the sheet, creating a flush assembly and providing high torque-out and pushout resistances.
Key Features:
- Self-Clinching Design: Installs by placing the nut into a properly sized hole in the sheet and applying pressure, embedding the head into the material for a flush finish.
- High Torque-Out and Pushout Resistances: Provides secure fastening with high resistance to torque and pushout forces.
- Flush Head: Ensures a smooth surface without protrusions, ideal for applications requiring a flush finish.
Technical Specifications:
- Thread Size: M4 x 0.7
- Thread Specification: 6g, ASME B1.13M, External
- Material: Aluminum
- Finish: Plain (no finish)
- For Use in Sheet Hardness: HRB 50 / HB 82 or less
- Length: 30 mm
- Hole Size in Sheet: 4 mm
- Minimum Sheet Thickness: 1 mm
- Maximum Hole in Attached Parts: 4.60 mm
- Minimum Distance Hole Center to Edge: 7.2 mm
- S Max.: 2.4 mm
Materials:
Dimensions:
- Head Height (H): 5.90 mm
- Hole Size in Sheet: 4 mm
- Length (L): 30 mm
- Maximum Hole in Attached Parts: 4.60 mm
- Minimum Distance Hole Center to Edge: 7.2 mm
- S Max.: 2.4 mm
Compatibility Information:
This nut is recommended for use in aluminum sheets with a hardness of HRB 50 or less and HB 82 or less. It is suitable for applications requiring a flush finish and high resistance to torque and pushout forces.
