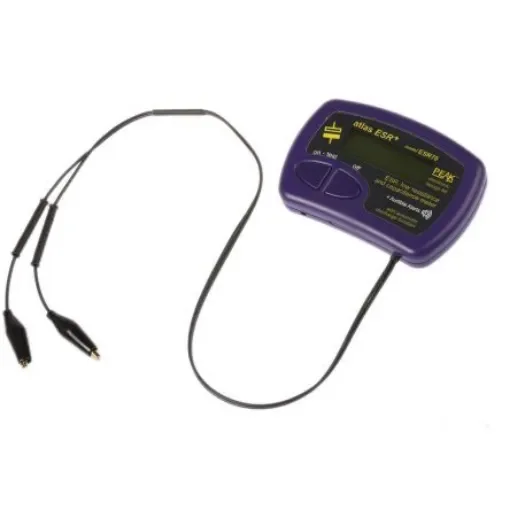

Peak Electronic Design ESR70 Handheld LCR Meter 22mF, 4 MO

Maximum Capacitance Measurement = 22mF
Maximum Resistance Measurement = 4 MO
Battery Type = A23
Bench/Handheld = Handheld
Display Type = LCD
Power Source = Battery
Dimensions = 103 x 70 x 20mm
Height = 20mm
Length = 103mm
Maximum Operating Temperature = +40°C
Minimum Operating Temperature = +10°C
Model Number p = ESR70mm

Peak Electronic Design ESR70 Resistance and Capacitance LCR Meter. Measuring a capacitor's ESR (equivalent series resistance) is a good indicator of capacitor condition. You can use the Atlas ESR in-circuit, saving you the trouble of removing capacitors. When testing capacitors out-of-circuit, the unit will also display the capacitance. The ESR70 provides instant results when the test button is pressed, a range of tones are produced in feedback of the measurement results. Also included extra-long and extra-flexible test cables (450mm of Silicone covered cable), 2mm plugs and sockets with removeable gold plated crocodile clips, comprehensive illustrated user guide and GP23 Alkaline battery. Features and Benefits:. Resolution down to 0.01 ohms Analyses at industry standard of 100kHz Capable of In-Circuit testing Polarity free, connect any way round ESR range 0.00 to 40 Ohms Protected against highly-charged capacitors Gold plated crocodile probes with 4-wire Kelvin connections ESR70 has a special audio feature to aid quick measurement Automatic analysis-start when you apply the probes. Automatic capacitor discharge using controlled discharge function. ESR (and low DC resistance) measurement (even in-circuit). Optional probe alternatives easily fitted.
