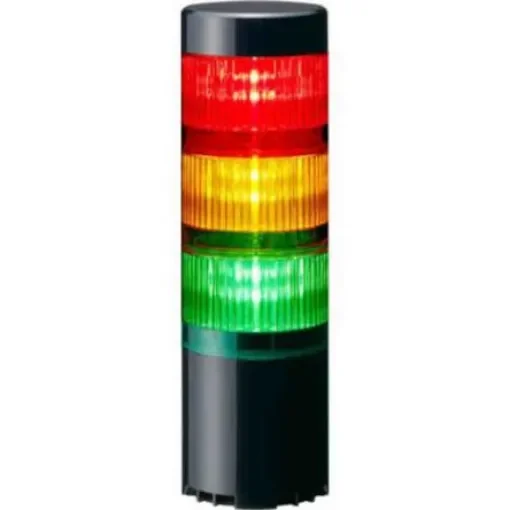

Patlite LR6-USB Series Coloured Buzzer Signal Tower, 3 Lights, 5 V dc (USB-bus power), Direct Mount - LR6-3USBK-RYG
USB-powered signal tower with 3 colored LEDs and an 80dB buzzer for effective error signaling.
Manufacturer part number: LR6-3USBK-RYG
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Series = LR6-USB
Number of Light Elements = 3
Lens Colour = Coloured
Bulb Type = LED
LED Colour = Red/Yellow/Green
Sounder Component = Buzzer
Multifunction = Yes
Mounting Style = Direct Mount
Height = 199mm
Base Diameter = 60mm
IP Rating = IP65
Maximum Decibel = 80dB
The Patlite LR6-USB, a USB interface was added to the innovative LR6 signal tower. The signal tower is powered and simultaneously controlled by the USB interface. The USB interface ensures easy retrofitting and integration into the existing manufacturing plant and allows sending an error message without the use of a PLC. The closed buzzer has 5 alarm sounds with 80dB. Controlling is possible via a PC or HMI. Due to the free software library DLL, the signal image can always be reprogrammed. Since the LR6-USB uses an open software architecture, the signal tower can also be used with other operating systems, e.g. Linux and Unix.Preconfigured with 3 LEDs: Red, Amber, Green Base diameter: 60 mm Black body Direct Mount 80 dB Buzzer Powered over USB 5 V dc (USB bus power)
