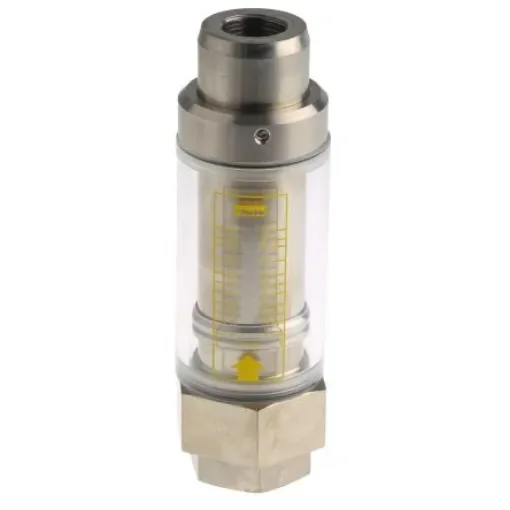

Parker UCC Flowline Series Variable Area Flow Meter for Liquid, 5 L/min Min, 55 L/min Max - FM26322122

Parker UCC FlowmeterThe Parker UCC Flowline series variable area flowmeter measures a liquid flow rate of 5L/min to 55L/min. This flowmeter has a graduated flow scale on the outer viewing sleeve. Also, has an indicator ring that magnetically coupled to an internal piston. It utilises the technique of differential pressure across a piston. As the flow increases, the piston moves against a calibrated spring. It can be installed on any plane.Features and BenefitsPipe diameter range is 3/4 in Connection type is 3/4 BSP Maximum operating temperature is 90°C High-pressure Pressures up to 350bar Accuracy ±5% FSD Repeatability ±1% FSD Relatively insensitive to viscosity changes Direct reading Oil or water calibrated Body material is brass
