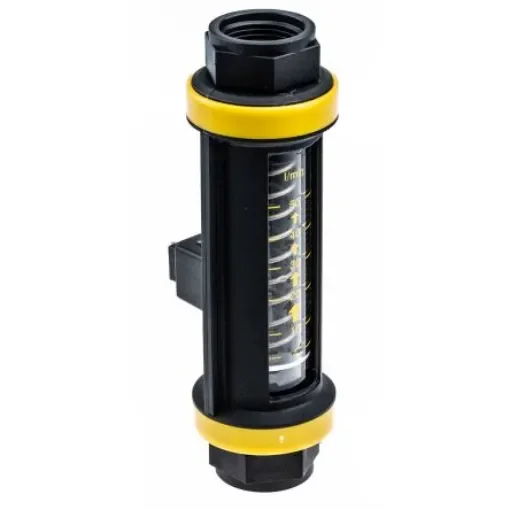

Parker UCC Easiflow Series Variable Area Flow Meter for Liquid, 4 L/min Min, 50 L/min Max - EF.7731112291

Parker UCC FlowmeterThe Parker UCC Easiflow series variable area flowmeter measures a liquid flow rate of 4L/min to 50L/min. This flowmeter enabled with an AC-DC switch. It is suitable for controlling valves or pump motors or for activating alarm signals. This indicator has an operating voltage of 300VAC/DC. Note: The switch is non-latching. Once the flow rate has passed the switching level, it will de-activate. If latching is required, a separate circuit containing a latching relay is necessary. All units are supplied with instruction leaflets. Inclusions: 2 x DIN standard sockets complete with plugs.Features and BenefitsPipe diameter range is 1in Connection type is 1 BSP female Maximum operating pressure is 10bar Maximum operating temperature is 60°C Media monitored is liquid It works in any plane Pressures up to 10bar Accuracy ±5% FSD Repeatability ±1% FSD Fully adjustable flow rate signalling Plant and equipment protection
