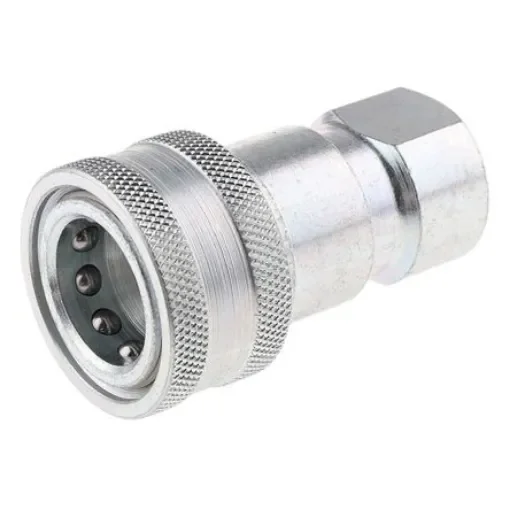

Parker Steel Female Hydraulic Quick Connect Coupling, G 1/2 Female - H4-62-BSPP

Thread = G 1/2 Female
Coupling Gender = Female
Thread Size = 1/2in
Material = Steel
Series = 60
Compatible With = CEJN 320/410, ISO 7241-1-B, Rectus 25/27
Type = Union
Locking Style = Ball Lock
Finish = Yellow Chromated, Zinc Plated
Seal Material = Nitrile Rubber
Thread Standard = G
Thread Gender = Female
Maximum Operating Pressure = 28 MPa
Maximum Operating Temperature = +110°C
Minimum Operating Temperature = -40°C

ISO 7241-B. Zinc Plated/Yellow Chromate Steel. Parker 60 series quick connect couplings for hydraulic applications. The 60 series is a double shut off coupling that is suitable for various hydraulic applications where hoses are frequently connected and disconnected. Features and Benefits. BSPP Thread sizes Hardened nipples and sleeves High flow capacity High pressure seal design Captive valve seal Durable ball locking mechanism Temperature range: -40 to +80°C. Applications. Industrial hydraulic lines Food and chemical processing Water and coolant lines Mobile Equipment
