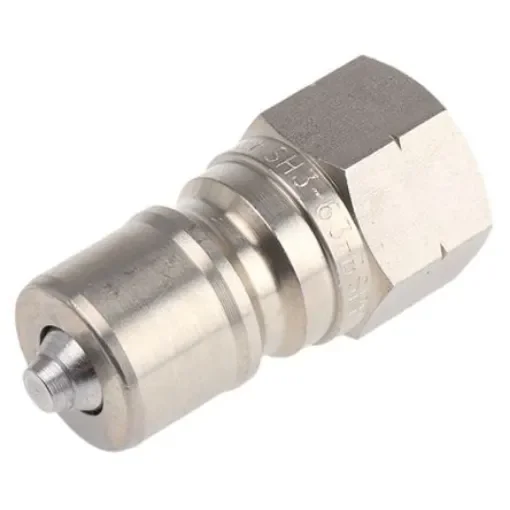

Parker Stainless Steel Male Hydraulic Quick Connect Coupling, G 3/8 Female - SH3-63-BSPP

Thread = G 3/8 Female
Coupling Gender = Male
Thread Size = 3/8in
Material = Stainless Steel
Series = 60
Compatible With = CEJN 320/410, ISO 7241-1-B, Rectus 25/27
Type = Nipple
Locking Style = Ball Lock
Seal Material = Nitrile Rubber
Thread Standard = G
Thread Gender = Female
Maximum Operating Pressure = 35 MPa
Maximum Operating Temperature = +110°C
Minimum Operating Temperature = -40°C

AISI 303 Stainless Steel. Parker 60 series quick connect couplings for hydraulic applications. The 60 series is a double shut off coupling that is suitable for various hydraulic applications where hoses are frequently connected and disconnected. Fitted with double O-Rings and stainless steel locking balls for durability. Features and Benefits. BSPP Thread sizes Hardened nipples and sleeves High flow capacity High pressure seal design Captive valve seal Durable ball locking mechanism Temperature range: -40 to +80°C. Applications. Industrial hydraulic lines Food and chemical processing Water and coolant lines Mobile Equipment
