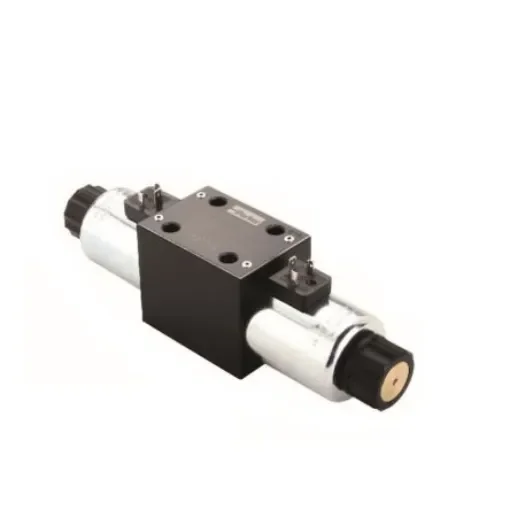

Parker, D1VW002CNJW Solenoid Actuated Directional Control Valve, CETOP 3, C, 24V dc

Number of Positions = 3
Number of Ports = 4-way
CETOP Mounting = CETOP 3
Power Supply Voltage = 24V dc
Solenoid Type = Double
Manufacturer Series = D1VW
Spool Type = C
Maximum Operating Pressure = 210 (T) bar, 350 (A) bar, 350 (B) bar, 350 (P) bar
Maximum Operating Temperature = +60°C
Minimum Operating Temperature = -25°C
Actuation Type = Solenoid

CETOP 03 Directional Control Valves. A range of CETOP 3 hydraulic directional control valves from Parker Hannifin with double solenoid or single solenoid with spring return actuation. D1W valves have been designed with excellent fluid flow, low-pressure drop and low energy usage and a flow rate of up to 80 ml/min. Features and Benefits. Mountable in any position (Horizontal preferred). Available as double solenoid or single solenoid with spring return. Flow rate of up to 80 ml/min and a low, energy saving pressure drop. 3 position and 2 position spools available with a wide selection of spool types. Manual solenoid override. Suitable for use with hydraulic oils conforming to DIN 51524. DIN NG06 / CETOP 03 / NFPA D03. Max wire length 50 m. 15000/h Max switching frequency. Max leakage @ 50 bar 10 ml/min (spool dependant). Wet pin armature solenoid threaded in tube. 3x1.5mm² wire recommended for installation. EN 175301-803 Solenoid connection (plug not included). Applications. Suitable for general industrial hydraulic applications.
