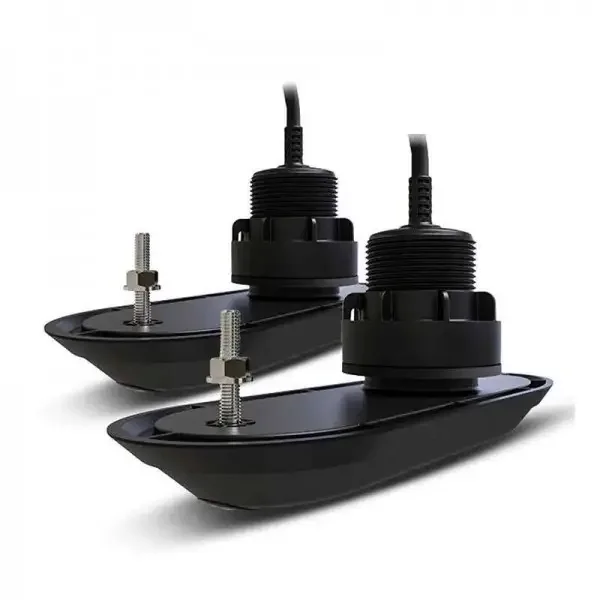

Plastic through-hull probe pack port and starboard 12° or 20°- RV-312 and RV-320 - RealVision 3D
Designed for inboard or outboard boats, the RV-312 plastic through-hull transducer allows you to easily identify structures and locate fish with the same clarity as the RealVision 3D™ sonar.
The RV-312 or RV-320 transducer is a wide spectrum CHIRP transducer with 4 channels containing DownVision™, SideVision™, RealVision 3D™ sonars, as well as a high-frequency CHIRP fish targeting device.
The transducer is also equipped with a heading and altitude reference system (AHRS) that stabilizes sonar imaging by automatically compensating for vessel movements.
You will obtain crystal clear images, even in waves, swells, and during maneuvers.
The RV-312 or RV-320 probe also has a sensor that allows for quick and precise measurement of water temperature.
- The Raymarine plastic through-hull probe pack RV-312 contains a pair of RealVision 3D probes with an internal offset facilitating adaptation to deadrise angles between 6° and 18°.
- The Raymarine plastic through-hull probe pack RV-320 contains a pair of RealVision 3D probes with an internal offset facilitating adaptation to deadrise angles between 14° and 26°.
This completely eliminates the need to resort to fairing blocks.
The low-profile model glides easily through the water without causing drag or cavitation.
The RV-312 or RV-320 transducer of the "quasi-flush" type is also perfectly suitable for towed boats.
The RV-312 or RV-320 transducer has a robust plastic through-hull housing, suitable for fiberglass, steel, or aluminum hulls.
One transducer transmits and receives to port and down, the other to starboard and down, to ensure complete underwater coverage at 180°, even on deep keel boats or those with any other underwater protrusions.
Each transducer has a 2 meter connection cable, connecting the Y cable to the 8 meter extension cable, creating a total cable length of 10 meters.
Box Contents
- Port plastic transducer with 2 meter cable
- Starboard plastic transducer with 2 meter cable
- Y cable for RealVision 3D transducer
- 8 meter (26 feet) extension cable for RealVision 3D transducer
- Anti-rotation bolt kit
- Installation instructions
