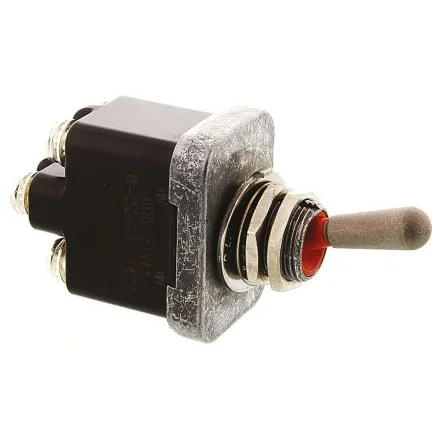

Otto Toggle Switch, Panel Mount, On-On, DPDT, Screw Terminal - T9-CS2-23
Reliable Otto DPDT toggle switch with on-on operation and screw terminal for panel mounting.
Manufacturer part number: T9-CS2-23
GTIN: 5059045144779
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = DPDT
Switch Operation = On-On
Contact Current Rating = 20 A @ 28 V dc
Mounting Type = Panel Mount
Terminal Type = Screw
Actuator Length = 17.53mm
Actuator Material = Stainless Steel
Contact Material = Silver Plated
Minimum Operating Temperature = -65°C
16A Sealed Switches (Screw terminal). Built to MIL-DTL-3950 IP68 Sealed Electrical life 20000 min, Mechanical life 40000 cycles Standard silver plated contacts Fitted with large reliable screw terminals Electrical rating 20A @ 28Vdc, 15A @ 115Vac
