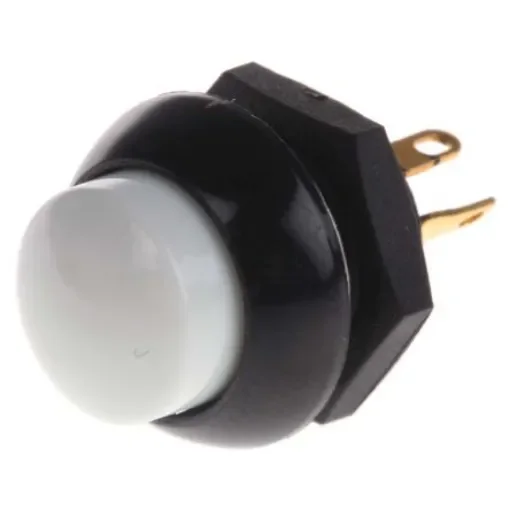

Otto Push Button Switch, Momentary, Panel Mount, SPDT, 28V dc, IP68 - P9213129W
The Otto Push Button Switch is a momentary SPDT switch designed for panel mounting with an IP68 rating.
Manufacturer part number: P9213129W
GTIN: 5059045483922
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Switch Operation = Momentary
Illuminated = No
Mounting Type = Panel Mount
Push Button Colour = White
Contact Configuration = SPDT
Voltage Rating = 28V dc
IP Rating = IP68
Contact Current Rating = 5 A @ 28 V dc
Contact Material = Gold Plated Silver Alloy
Manufacturer Part No. = P9213129W
UL; CSA. For white body versions see stock number ; 737-3787 737-3787 typically. For panel sealing use gasket stock number ; 737-3863 737-3863. Otto P9 - Black Body Push Button Switch IP68. Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required. Sealed to IP68 Watertight (submersible to 1 meter water pressure) 1 N/O + 1 N/C momentary contacts (form Z) Flush and raised dome button styles available in a wide choice of colours. Matt or standard finish available Threaded body (panel knock out 12.827mm) Small size with black bezel and body Supplied with nut ; panel seal gasket Operating Temperature: -55 to +85°C Contact Rating: 5A @ 28Vdc or 115Vac; 2.5A @ 250Vac
