Otto Push Button Switch, Momentary, Panel Mount, SPDT, 28 V dc, 115V ac, IP68S - P1-90266

Switch Operation = Momentary
Illuminated = No
Mounting Type = Panel Mount
Push Button Colour = Red
Contact Configuration = SPDT
Voltage Rating = 28 V dc, 115V ac
Push Button Style = Mushroom
IP Rating = IP68S
Contact Current Rating = 10 A @ 115 V ac, 10 A @ 28 V dc
Contact Material = Brass
Contact DC Voltage Rating = 28V

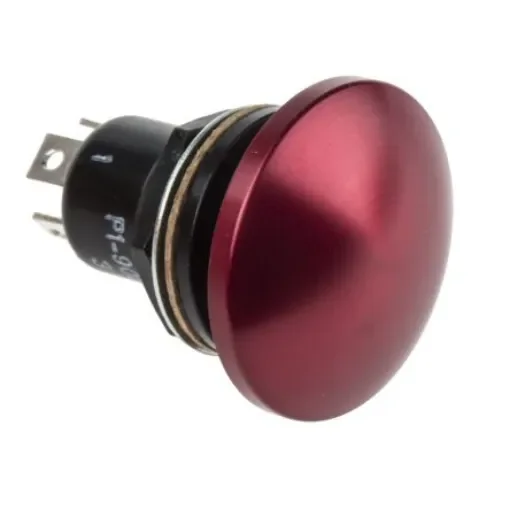

Otto P1 Anodized Aluminium Alloy Mushroom Pushbutton. The P1-90266 pushbutton from Otto has a red mushroom shaped actuator and is manufactured using anodized aluminium alloy. This makes the unit robust and suitable for use in harsh environments and the IP68S rating provides a high degree of ingress protection from dust and liquids. Features and Benefits. Includes hex nut, lock washer and panel seal gasket Electrical life: 25,000 cycles at full load Mechanical life: 250,000 cycles Operating temperature range: -55 °C to +85 °C
