Otto Push Button Switch, Momentary, Panel Mount, 28 V dc, 115V ac, IP64 - P3-D000141W

Switch Operation = Momentary
Illuminated = No
Mounting Type = Panel Mount
Push Button Colour = Red
Voltage Rating = 28 V dc, 115V ac
Push Button Style = Dome
IP Rating = IP64
Contact Current Rating = 15 (Resistive) A, 5 (Inductive) A
Contact Material = Brass
Manufacturer Part No. = P3-D000141WV

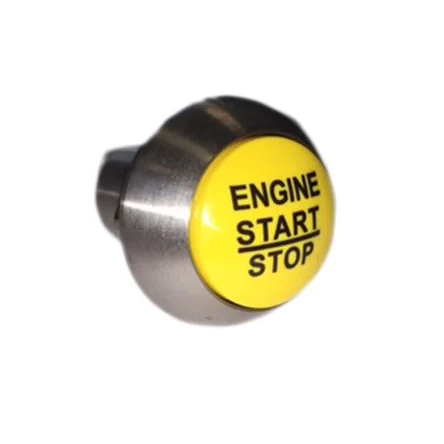

Otto P3-D Series Push Button Switches. The P3-D dome push button switches have been designed for rugged applications. They are able to offer excellent mechanical and electrical performance even under the most demanding conditions. At full load they are rated to at least 100 000 operations and over a million operations in low level switching applications. Two legend options are available. Either a yellow button with engine Start/Stop (IP64) or an orange push button with a black horn (IP68s) symbol. Features: Attractive dome style button Double break momentary action Withstands extreme shock ; vibration Positive tactile feedback Solder Terminals
