Key Features:
- Mirror-polished stainless steel finish
- Vibration damping via central braked axis
- Rounded edges for a neat design
- Suitable for medium load applications
- Available in three models: protruding knot (outer side), 1/2 recessed knot, and underside knot
Technical Specifications:
- Material: AISI 316 stainless steel
- Finish: Mirror polished
- Type: Symmetrical
- Node (Axis): Protruding, 1/2 recessed, or underside
- Thickness: 2 mm

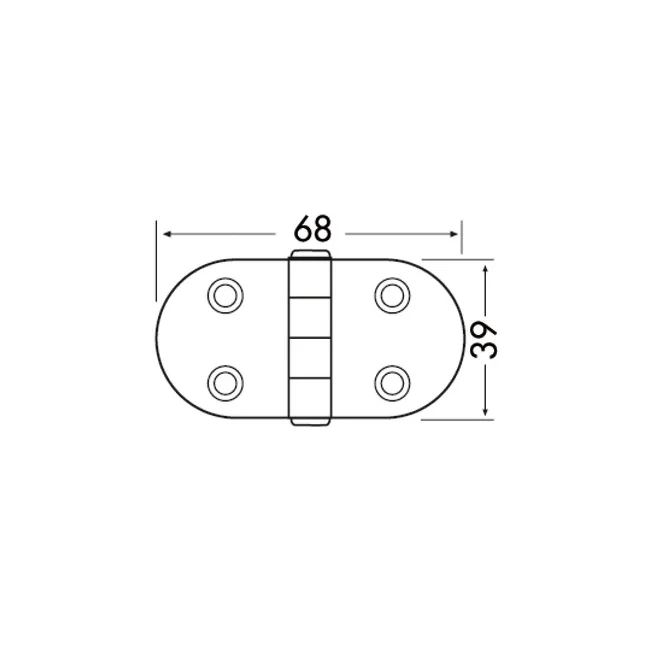

- Dimensions: 68 x 39 mm
- Vibration Damping: Central braked axis
- Mounting: Four screws (not supplied)
Materials: Constructed from AISI 316 stainless steel, known for its excellent corrosion resistance, making it ideal for marine environments.
Dimensions:
- Length: 68 mm
- Width: 39 mm
- Thickness: 2 mm
Compatibility Information: Designed for use in marine applications, suitable for boat hatches, doors, and lockers.
Additional Details:
- The central braked axis effectively dampens vibrations, enhancing the stability and longevity of the hinge.
- The mirror-polished finish not only provides a sleek appearance but also offers enhanced resistance to corrosion, ensuring durability in harsh marine conditions.
- The hinge is available in three configurations to suit different installation requirements: protruding knot (outer side), 1/2 recessed knot, and underside knot.
