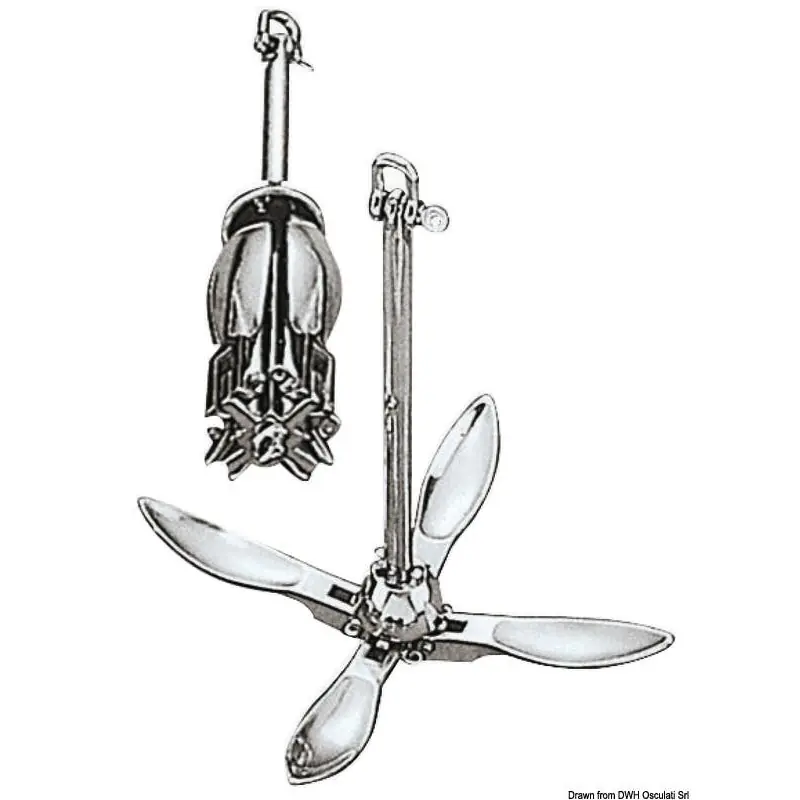

The Stainless Steel Grapnel Anchor by Osculati is a high-quality anchoring solution designed for small boats, kayaks, jet skis, tenders, and buoys. Crafted from mirror-polished AISI 316 stainless steel, it offers exceptional resistance to corrosion and wear, ensuring durability in various marine environments.
- High-Quality Material: Constructed from mirror-polished AISI 316 stainless steel for enhanced corrosion resistance.
- Four Articulated Arms: Equipped with four articulated arms that adapt to the shape of the seabed, providing a secure grip on rocks, seaweed, roots, or debris.
- Lightweight and Compact: Designed to be lightweight and compact, making it easy to store and handle.
- Versatile Compatibility: Suitable for all types of seabeds, including sandy, muddy, stony, or mixed terrains.
- Lifting Ring: Features a lifting ring for easy release when needed.
Technical Specifications
| Weight (kg) | Length (mm) | Width (mm) | Height (mm) | Arm Length (mm) |
|---|
| 0.7 | 175 | 165 | 48 | 75 |
| 1.5 | 310 | 265 | 75 | 100 |
| 2.5 | 360 | 315 | 85 | 110 |
| 3.2 | 420 | 365 | 100 | 110 |
| 4 | 470 | 380 | 110 | 130 |
| 6 | 565 | 440 | 130 | 140 |
| 8 | 575 | 490 | 140 | 140 |
| 10 | 610 | 595 | 140 | 140 |
| 12 | 650 | 640 | 140 | 140 |
Materials
- Shank and Arms: Mirror-polished AISI 316 stainless steel.
- Counterweight Bar: Hot galvanized cast steel (for models 0.7 kg to 3.2 kg).
Dimensions
The dimensions vary based on the weight of the anchor. Please refer to the technical specifications table above for detailed measurements.
Compatibility Information
This anchor is ideal for use with small boats, kayaks, jet skis, tenders, and buoys. Its design allows it to securely anchor on various seabed types, including sandy, muddy, stony, or mixed terrains.
