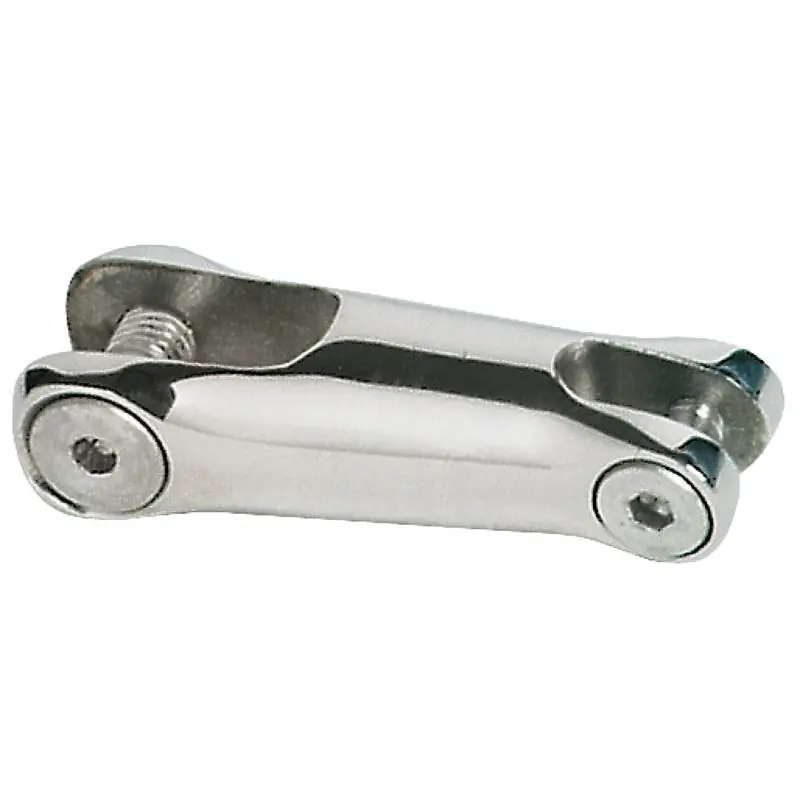

The Osculati Stainless Steel Chain-Anchor Junction is a high-quality marine accessory designed to securely connect your anchor to the chain, facilitating smooth retrieval and preventing entanglement. Crafted from precision-cast AISI 316 stainless steel, this junction offers exceptional corrosion resistance and durability in marine environments.
- Flush Design: Eliminates protrusions, allowing the anchor chain to slide smoothly through the bow roller and preventing shackle entanglement.
- Material: Made from AISI 316 stainless steel for superior corrosion resistance and longevity.
- Chain Compatibility: Suitable for 6-8 mm chains.
- Easy Installation: Designed for straightforward attachment between the anchor and chain without the need for additional hardware.
Technical Specifications
- Chain Diameter: 6-8 mm
- Width (B): 10 mm
- Length (L): 16 mm
- Height (H): 90 mm
- Thickness (P): 9 mm
- Width (G): 22 mm
- Center-to-Center Distance (C): 7 mm
Materials
- Construction: Precision-cast AISI 316 stainless steel
Dimensions
- Product Dimensions: 16 mm (L) x 10 mm (B) x 90 mm (H)
- Product Weight: Approximately 0.28 kg
Compatibility Information
- Chain Size: Compatible with 6-8 mm chains
- Anchor Type: Designed for use with various anchor types, ensuring a secure connection
