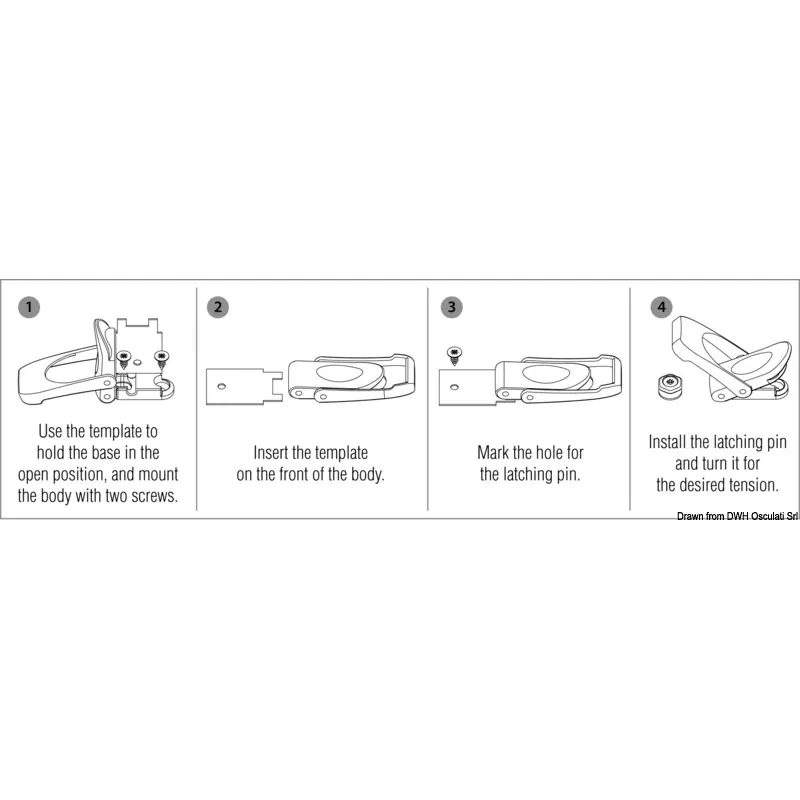

Mirror-polished AISI 316 stainless steel lever closure, designed to fit various applications and ensure the closure of any hatch.The locking pin with eccentric hole can be rotated to achieve the desired closing tension.Once installed, the device has a flush design with ergonomic handle for easier use.When open, the closing hook rotates at 180° and doesn't exceed the handle overall dimensions thus preventing to be hit by mistake.It includes a PVC template for easier installation.

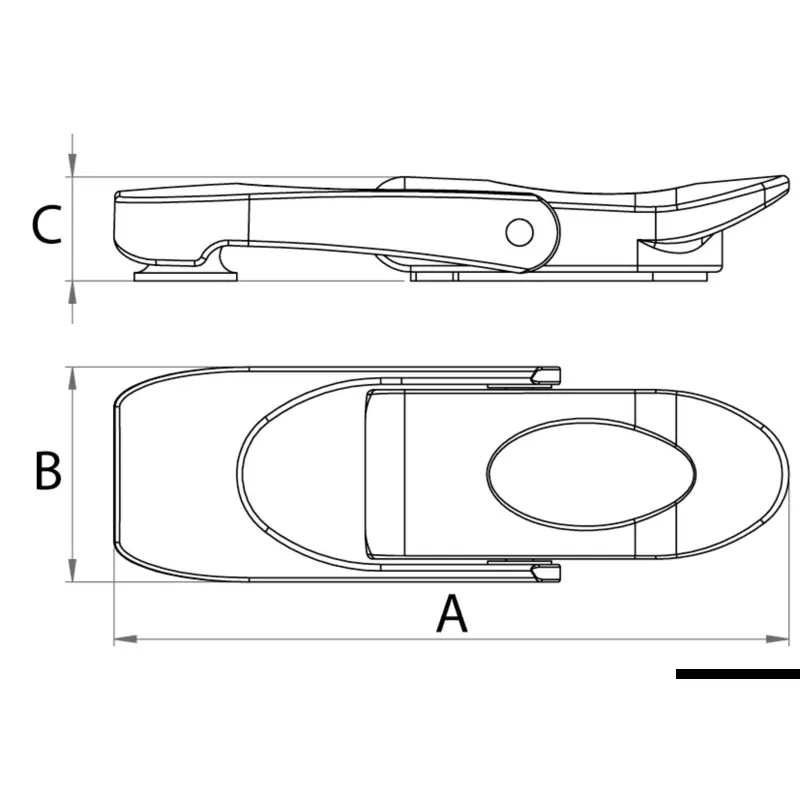

Specifications
| Property | Value |
|---|
| mm - A | 80 |
| mm - B | 26 |
| mm - C | 13 |
| Screw size | M4 |
