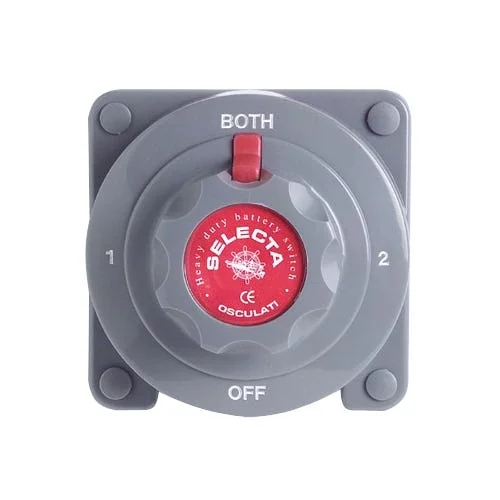

The Selecta Battery Switch by Osculati is a versatile device designed for efficient battery management in marine environments. It allows users to operate one or both batteries or disconnect them entirely, providing flexibility and safety. The switch is equipped with a safety clip-on lock rotator, ensuring secure operation. It is CE type-tested in compliance with the 94/25/CE standard, affirming its reliability and adherence to European safety regulations.
- Versatile Operation: Enables the use of one or both batteries or complete disconnection.
- Safety Mechanism: Features a safety clip-on lock rotator for secure operation.
- Compliance: CE type-tested in accordance with the 94/25/CE standard.
Technical Specifications:
- Continuous Capacity: 175 A at 12/24V.
- 10-Minute Capacity: 300 A.
- Terminal Size: 10 mm.
- Dimensions: 135 x 135 x 75 mm (Height).
- Mounting Spacing: 110 mm.
Materials:
- Contacts: Copper.
- Springs: Stainless steel.
- Casing: PC/PTB/Fiberglass flame-resistant material.
- Protective Base: Included for cable protection.
Dimensions:
- Base Dimensions: 104 x 104 mm.
- Height: 80 mm.
- Mounting Hole Diameter: 95 mm (for flush mounting).
Compatibility Information:
This battery switch is suitable for use with 12V and 24V systems, making it adaptable to various marine electrical configurations. It is designed to handle continuous currents up to 175 A and intermittent currents up to 300 A, accommodating a wide range of boating applications.
