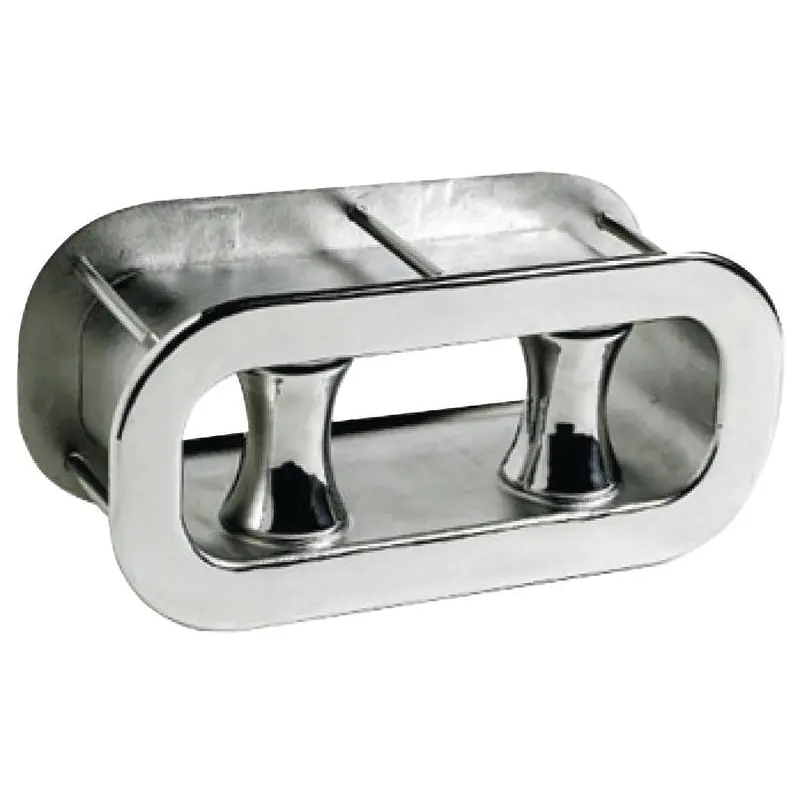

The Osculati Roller Anchor Well is a robust and practical accessory designed to guide your anchor and chain smoothly, preventing damage or jamming. Crafted from high-quality AISI 316 stainless steel, it offers exceptional resistance to corrosion and impacts. The well features two stainless steel rollers that facilitate the movement of the anchor and chain. It includes a backing plate and can be adapted to hulls with a depth of 12.5 cm, depending on the chosen model.
- Constructed from mirror-polished AISI 316 stainless steel
- Equipped with two stainless steel rollers for optimal sliding
- Includes a backing plate for secure installation
- Adjustable collar to fit hulls with a depth of 12.5 cm
- Easy to install and maintain
Technical Specifications
Model 01.353.00:
- Dimensions:
- A: 340 mm
- B: 160 mm
- C: 270 mm
- D: 91 mm
- E: 105 mm
- Adjustable Collar: 280 x 100 mm
- Maximum Hull Thickness: 125 mm
- Backing Plate: 8 mm
Model 01.353.06:
- Dimensions:
- A: 248 mm
- B: 148 mm
- C: 180 mm
- D: 82 mm
- E: 60 mm
- Adjustable Collar: 190 x 92 mm
- Maximum Hull Thickness: 80 mm
- Backing Plate: 6 x 8 mm
Materials
- Mirror-polished AISI 316 stainless steel
- Stainless steel rollers
Dimensions
- Model 01.353.00:
- Length: 340 mm
- Width: 160 mm
- Height: 270 mm
- Model 01.353.06:
- Length: 248 mm
- Width: 148 mm
- Height: 180 mm
Compatibility Information
- Suitable for various anchor types, including Delta, Bruce, and Trefoil
- Compatible with hulls up to the specified maximum thickness for each model
