Key Features:

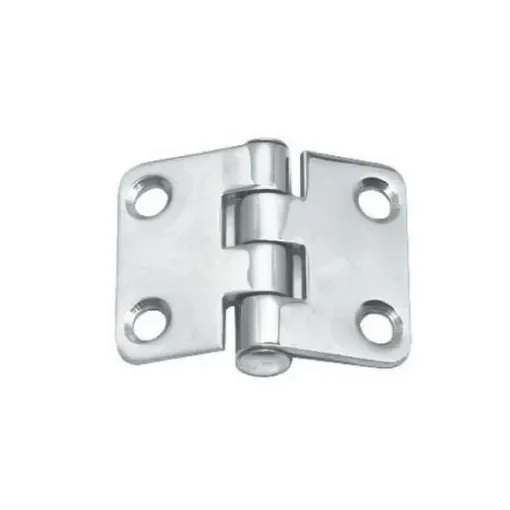

- Reversed pin design for bidirectional door opening.
- Mirror-polished stainless steel construction for enhanced durability and corrosion resistance.
- Vibration damping achieved through a braked central axle, ensuring stable and reliable performance.
Technical Specifications:
- Dimensions: 48 mm x 37 mm
- Thickness: 2 mm
- Material: Stainless Steel A2 (304 grade)
- Finish: Mirror-polished
- Design: Reversed pin hinge for dual-directional door movement
- Vibration Damping: Braked central axle
Materials:
- Stainless Steel A2 (304 grade): Contains approximately 18% chromium and 8% nickel, offering high corrosion resistance and good heat resistance.

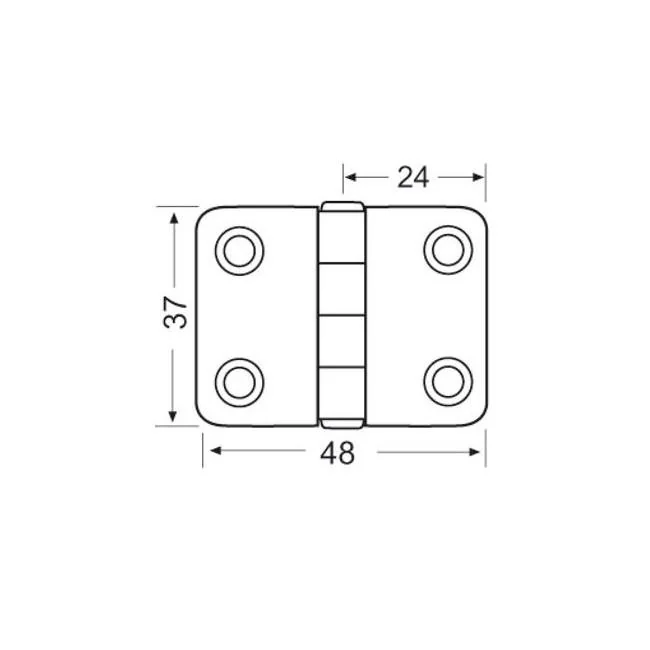

Dimensions:
- Length: 48 mm
- Width: 37 mm
- Thickness: 2 mm
Compatibility Information:
- Ideal for marine applications due to its corrosion-resistant properties.
- Suitable for doors or panels requiring bidirectional opening.
Additional Details:
- Designed to provide easy opening and closing of doors.
- The braked central axle enhances stability and reduces vibrations during operation.
