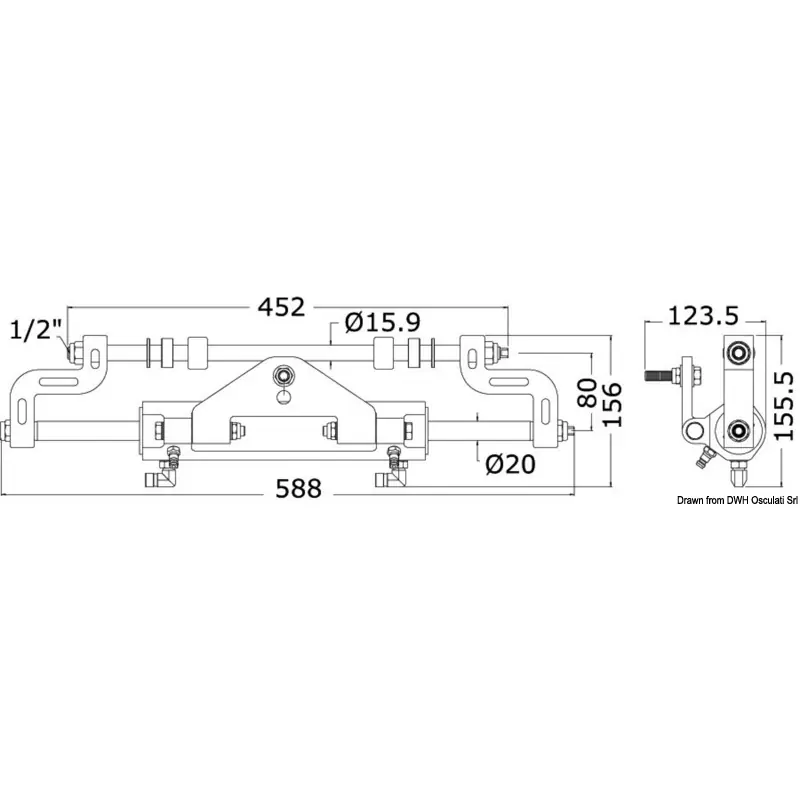

The kit includes:• LM-HP-xx semi-recessed pump with check and overpressure valve. 5 pistons. 70-bar pressure. Max 711-mm Ø steering wheel.• LM-OC-xxx-AF hydraulic cylinder. Front mounting.• 2 x 7.5-m 9/16” hoses (to be cut to length). Fitted with reusable terminal fittings. • 2 litres of hydraulic oil. It conforms to Directives 2013/53/U and ISO 10592.
Specifications
| Property | Value |
|---|
| Max HP | 300 |
| Pump - type | LM-HP-27 |
| Pump - flow | 27 cc/rev. |
| Cylinder - type | LM-OC-300-AF |
| Cylinder - volume cc | 166 |
