Key Features:

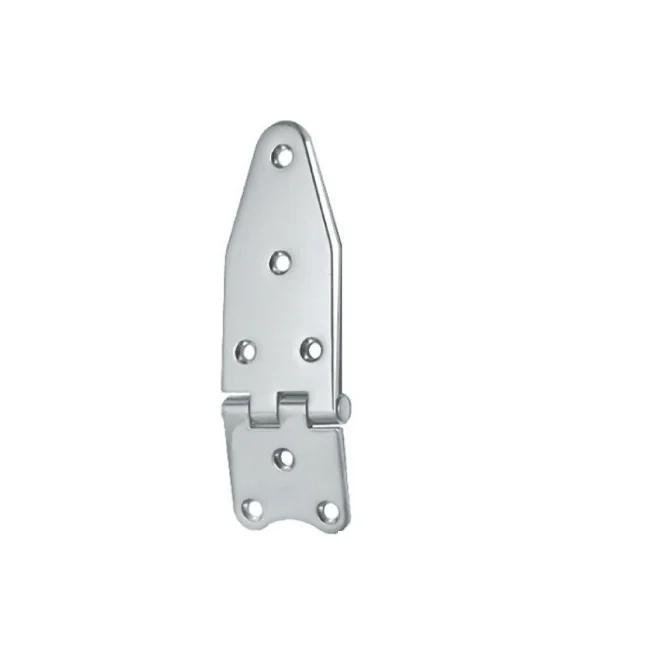

- Constructed from mirror-polished stainless steel for enhanced durability and aesthetic appeal.
- Designed with a reversed pin mechanism, allowing the door to open in both directions.
- Incorporates vibration damping through a braked central axle, reducing noise and wear.
Technical Specifications:
- Material: Stainless Steel A2 (304 grade)
- Thickness: 2 mm
- Width: 40 mm
- Length: 129 mm
- Long Side: 92 mm
- Short Side: 37 mm
- Screw Holes: 7
Materials:
- Stainless Steel A2 (304 grade)

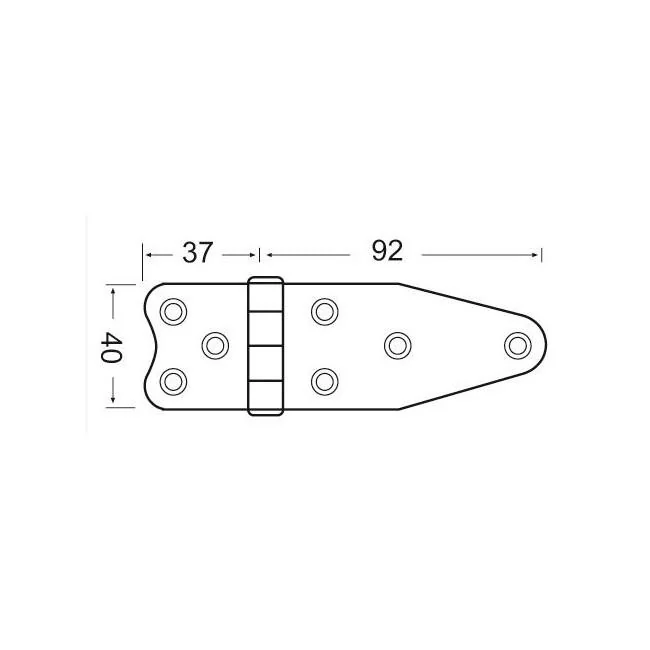

Dimensions:
- Length: 129 mm
- Long Side: 92 mm
- Short Side: 37 mm
- Width: 40 mm
- Thickness: 2 mm
Compatibility Information:
- Suitable for marine applications, particularly for doors requiring bidirectional opening.
- Compatible with standard mounting practices for stainless steel hinges.
Additional Details:
- The reversed pin design ensures the hinge cannot be unhinged from the outside, providing added security.
- The braked central axle feature effectively dampens vibrations, enhancing the longevity and performance of the hinge.
