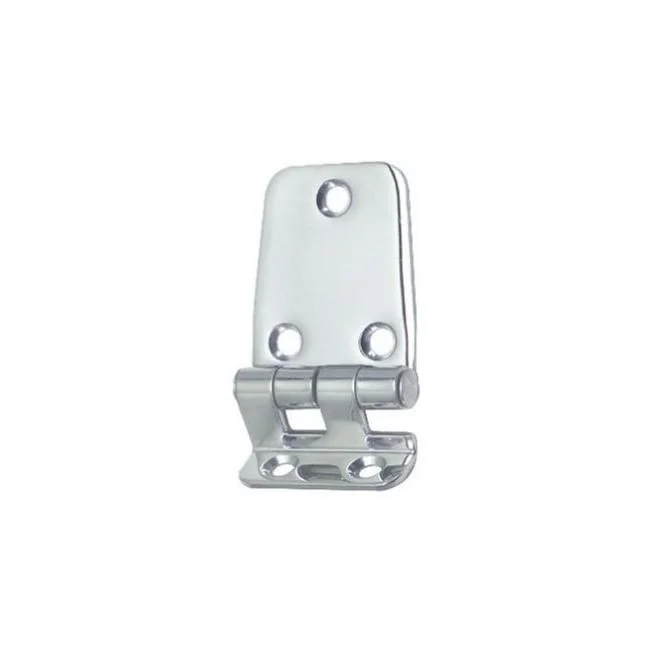

Key Features:
- Mirror-polished stainless steel construction for enhanced durability and aesthetic appeal.
- Offset design allows doors or lids to open at angles different from 90 degrees, facilitating access in tight spaces.
- Coated hinge pin ensures smooth and efficient movement.
- Vibration damping achieved through a braked central axle, reducing noise and wear.
- Simple installation with four screw holes (screws not included).
Technical Specifications:
- Material: Polished Stainless Steel
- Hinge Type: Offset
- Thickness: 2mm

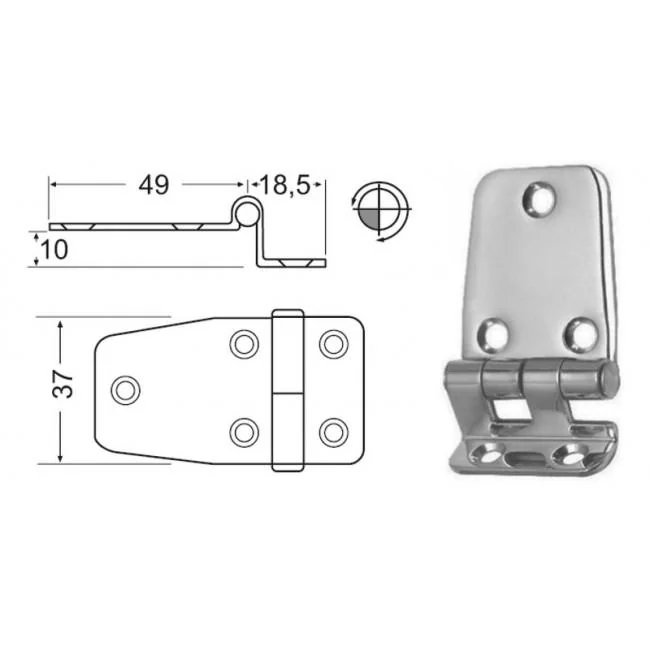

- Dimensions:
- Height (Pin): 37mm
- Width (Open): 67.5mm
- Short Side Width: 18.5mm
- Overhang: 10mm
- Mounting: Four screw holes (screws not included)
Materials:
- Constructed from high-quality A2 grade stainless steel, also known as 304 grade, containing approximately 18% chromium and 8% nickel, providing excellent corrosion and heat resistance.
Compatibility Information:
- Ideal for marine applications, including boat doors and furniture, where space optimization and durability are essential.
- Suitable for use in environments requiring resistance to corrosion and vibration.
