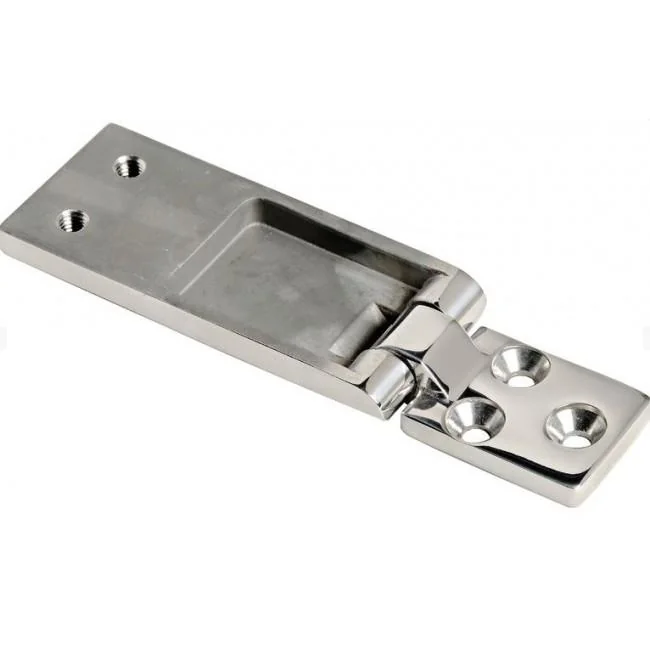

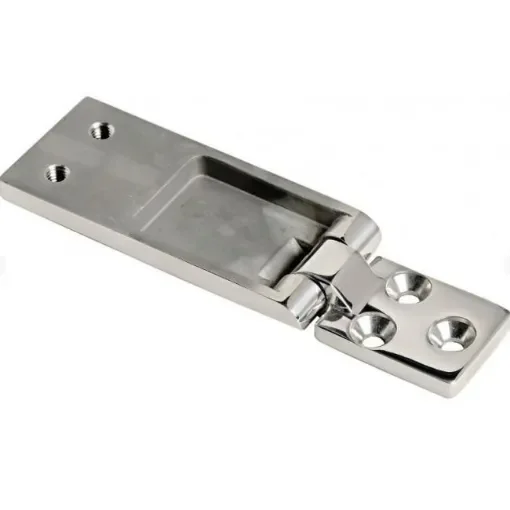

The PIRAMID Hinge for Hatches is a high-quality marine hardware component designed for the secure attachment and easy operation of porthole panels on boats. Crafted from mirror-polished AISI 316 stainless steel, it offers exceptional corrosion resistance, making it ideal for marine environments.
- Material: Mirror-polished AISI 316 stainless steel
- Design: PIRAMID style hinge for hatches
- Corrosion Resistance: High resistance to marine corrosion
- Aesthetic: Mirror-polished finish for a sleek appearance
Technical Specifications

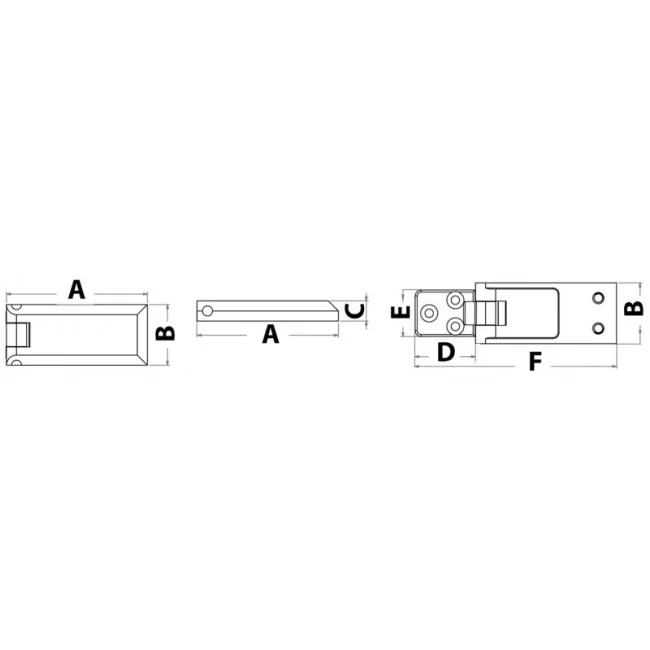

- Dimensions: A x B: 95 x 40 mm, C: 10 mm, D x E: 40 x 30 mm, F x B: 135 x 40 mm
- Weight: 0.25 kg
- Material Grade: AISI 316 stainless steel
Materials
Stainless Steel AISI 316: Known for its excellent corrosion resistance, especially in marine environments.
Dimensions
- A x B: 95 x 40 mm
- C: 10 mm
- D x E: 40 x 30 mm
- F x B: 135 x 40 mm
Compatibility Information
This hinge is specifically designed for boat hatches and portholes, ensuring a secure and reliable attachment. Its design allows for easy opening and closing, facilitating ventilation and lighting within the cabin.
Additional Details
- Finish: Mirror-polished for enhanced aesthetics
- Installation: Designed for straightforward installation on boat hatches
