Water-resistant IP 56; installation requires a rectangular hole size 21.5x36.8 mm; maximum capacity of 20 A at 12volt, 15 A at 24 volt. Fitted with two lights: one illuminates the user symbol wherein it's connected; always on (so it can be located when it's dark), the other light illuminates a special gap under the symbol which switches on, i.e. when the use is activated, slot to be ordered separately.
Specifications
| Property | Value |
|---|

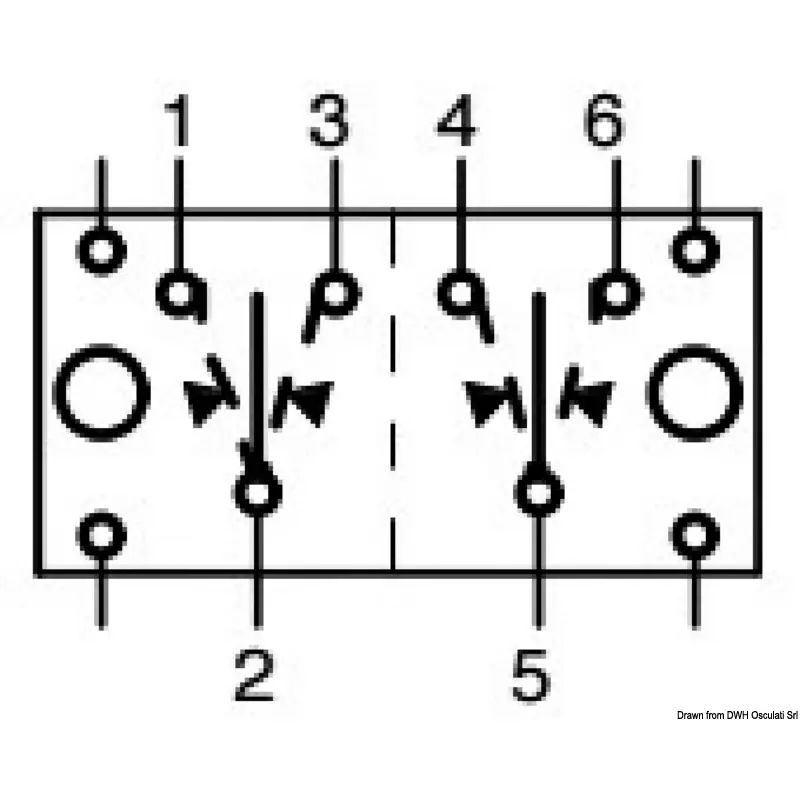

| Type | (ON)-OFF-(ON)* |
| Suitable for | Trim tabs, hydraulic pumps, windlasses |
| Terminals | 8 bipolar |
