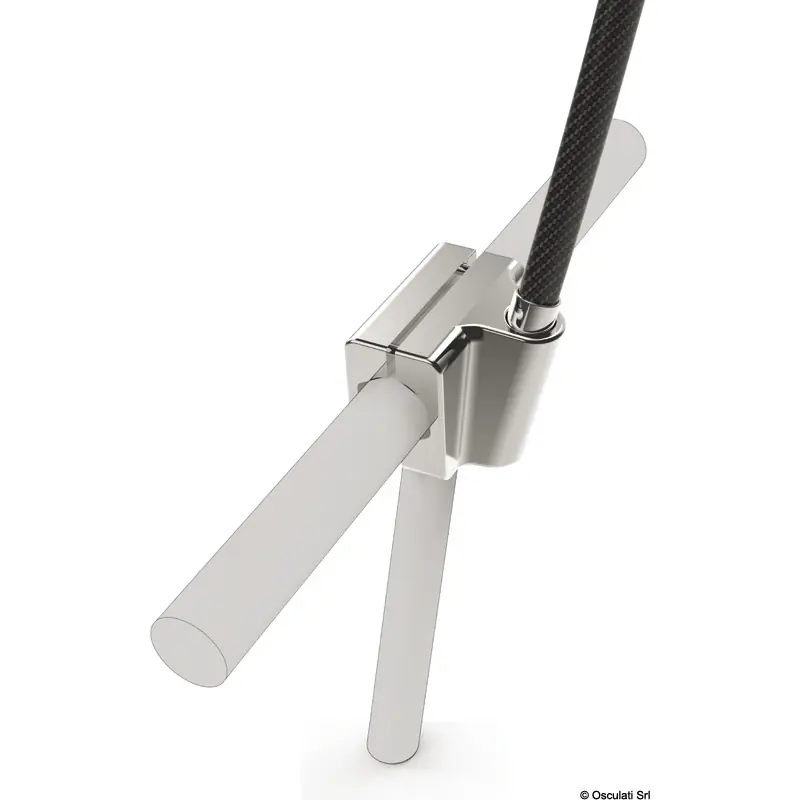

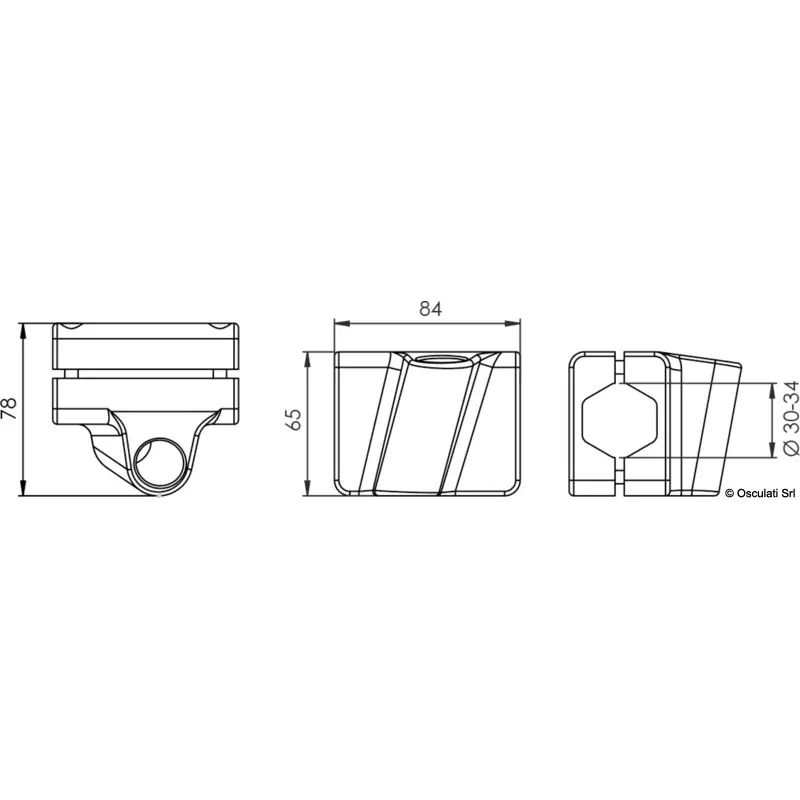

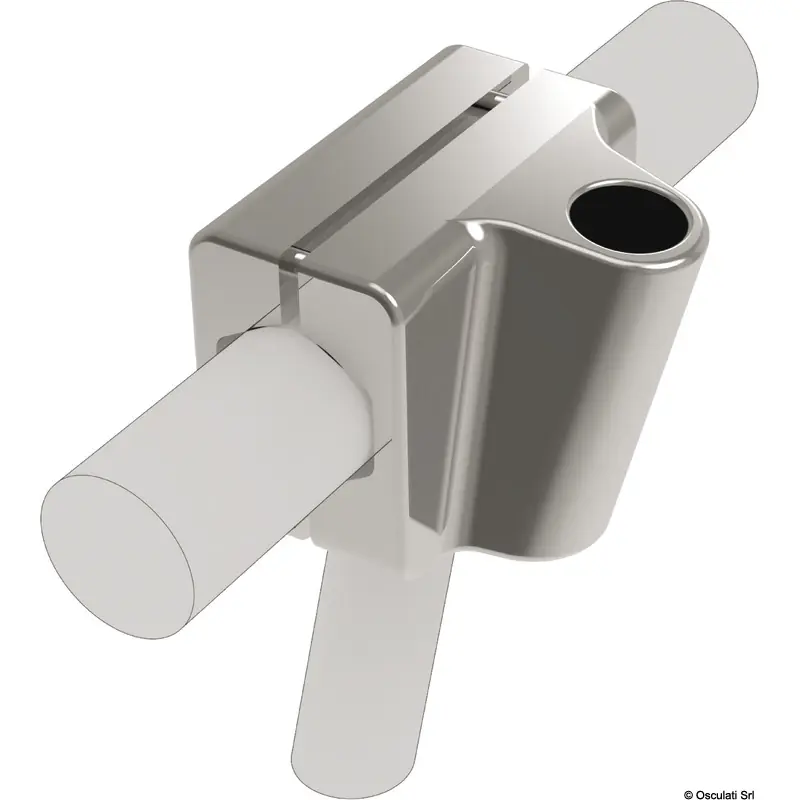

Pair of bushings (DX and SX) in stainless steel AISI 316 to be fixed on the pulpit at the point where it crosses the support arm (to prevent the bushing from rotating).Adaptable to pulpits with diameters from 30 to 34 mm and support arm diameters from 25 to 28 mm.Accommodates a pulpit joint angle from 90° to 45°.Designed with a 15° angle towards the bow or stern and a 12° outward tilt of the vessel to create a self-tensioning system and maximise the size of the awning (Screws included).
