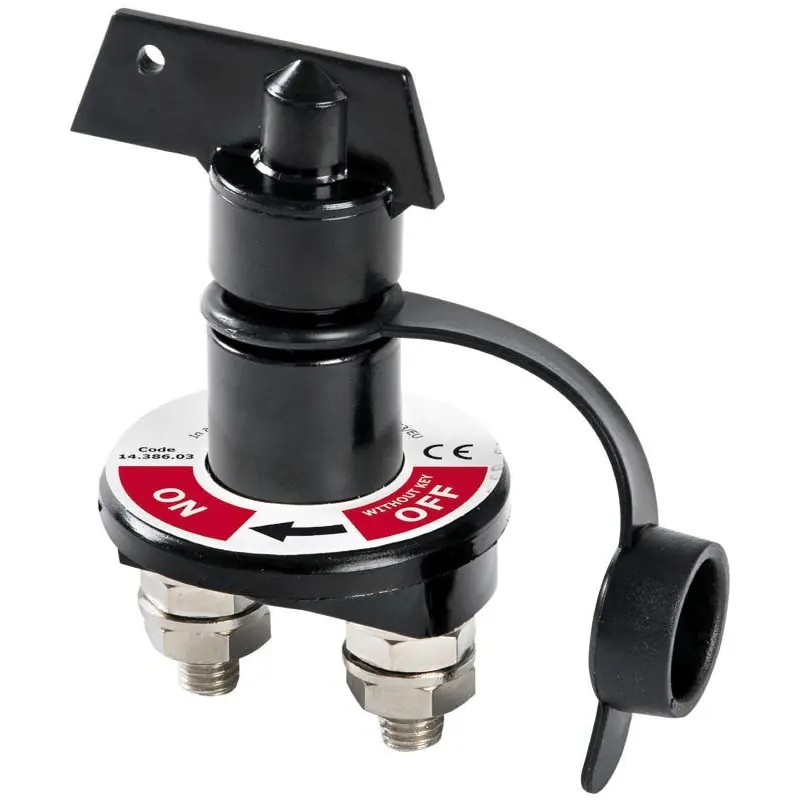

The Osculati Marine Battery Switch 100 A is a robust and reliable device designed to manage your boat's electrical power system effectively. This unipolar, two-position switch isolates the battery to prevent unnecessary discharges and mitigate the risk of short circuits. It features a removable key for secure power management, preventing accidental manipulation. The switch supports a continuous current of 100 A and can handle a maximum current of 1000 A for 5 seconds, ensuring reliable performance. Constructed from durable black polycarbonate, it is equipped with a watertight rubber cap and a splash-proof key, making it suitable for marine environments. The flange mounting design allows for easy installation, and the switch is CE type-tested in compliance with the 2013/53/EU (ISO 8846 MARINE - EN 28846) directive. It is a mandatory device to be mounted on the positive cable of your boat's electrical system.
- Effective battery isolation
- Prevention of unnecessary discharges
- Secure management with removable key
- Supports up to 1000 A maximum current for 5 seconds
- Constructed from durable black polycarbonate
- Equipped with watertight rubber cap and splash-proof key
- CE type-tested in compliance with the 2013/53/EU (ISO 8846 MARINE - EN 28846) directive
- Mandatory device to be mounted on the positive cable
Technical Specifications:
- Nominal Current: 100 A
- Maximum Current: 1000 A for 5 seconds
- Voltage: 12/24 V
- Flange Diameter: 60 mm
- Pin Diameter: 10 mm
- Dimensions: 57 mm x 57 mm
- Material: Black polycarbonate
- Mounting Type: Flange mounting
- Certifications: CE type-tested in compliance with the 2013/53/EU (ISO 8846 MARINE - EN 28846) directive
Materials:
- Black polycarbonate body
- Nickel-plated brass key pin
- Watertight rubber cap
- Splash-proof key
