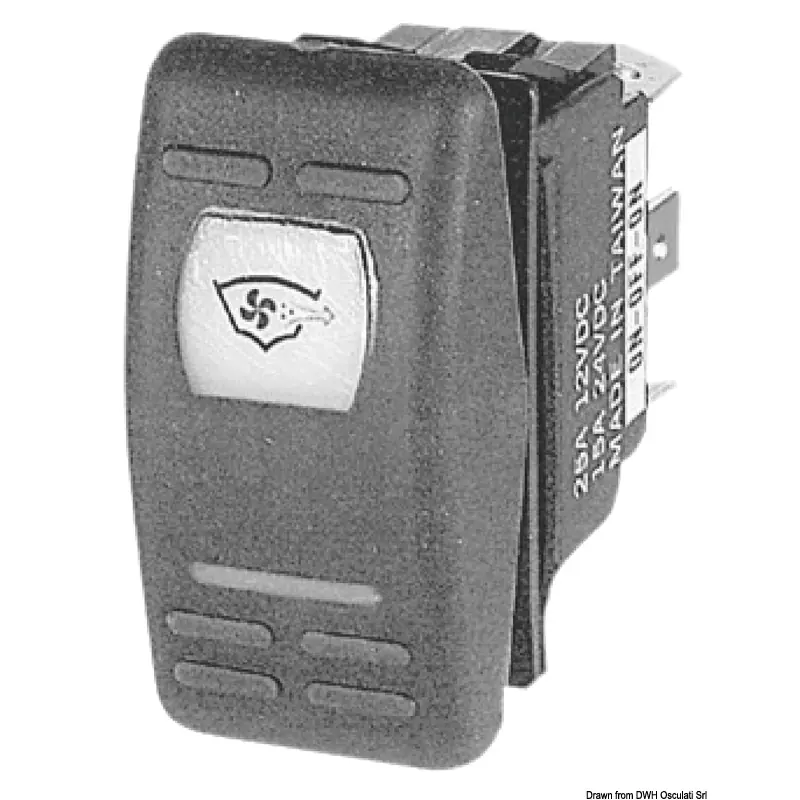

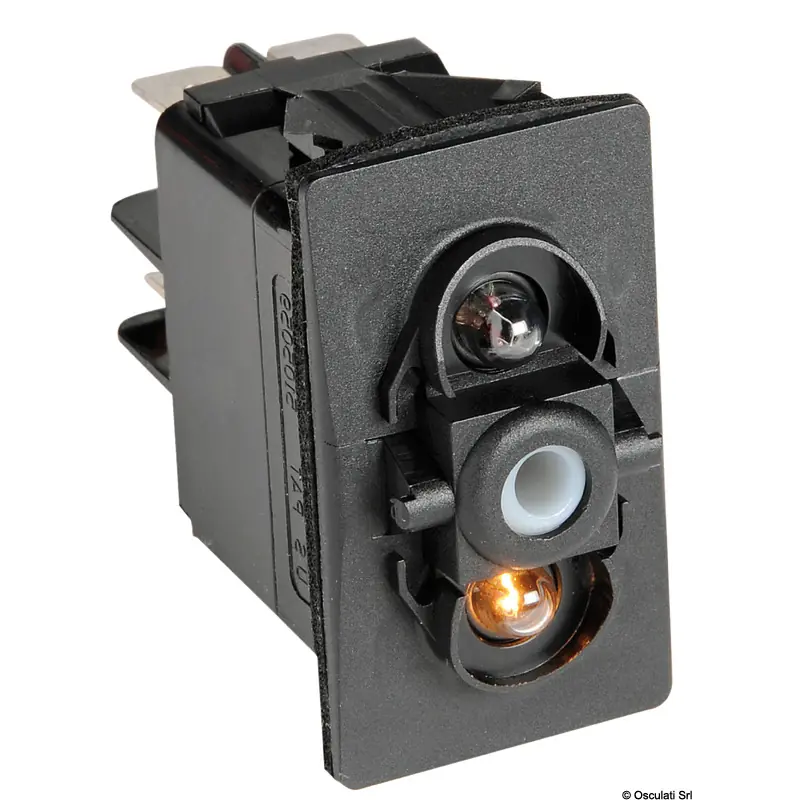

IP56 watertight, Marina series. 21.5x36.8-mm rectangular bore required for installation. Maximum capacity 20 A at 12 V and 15 A at 24 V. Supplied with double red LED: one for the symbol, which is always on, the second for a special slit under the symbol that switches on when thesymbol indicator is activated. Rocker switch to order separately.
Specifications
| Property | Value |
|---|
| Version | No toggle |

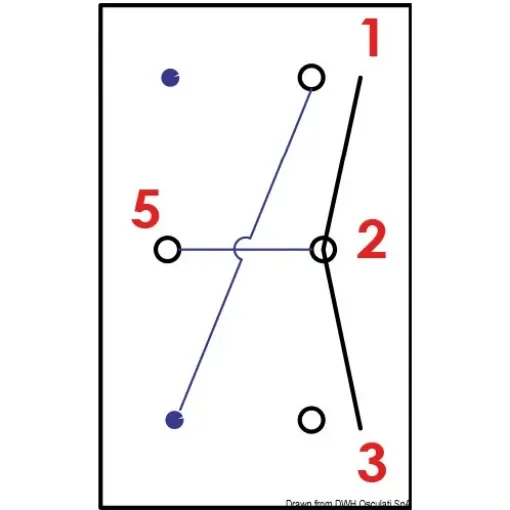

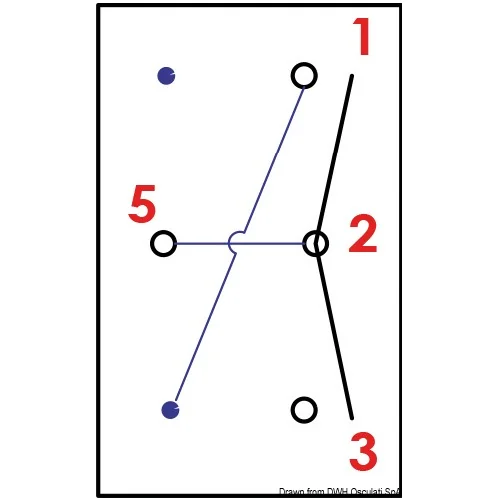

| Type | ON1 - OFF - ON1+2 |
| Recommended for | ON1 = circuit 1 ON1+2 = circuit 1+2 Navigation lights on hulls up to 12 m: ON1 = white 360° ON1+2 = white 360°+ red/green 112°.5 |
| N. of terminals | 4 |
