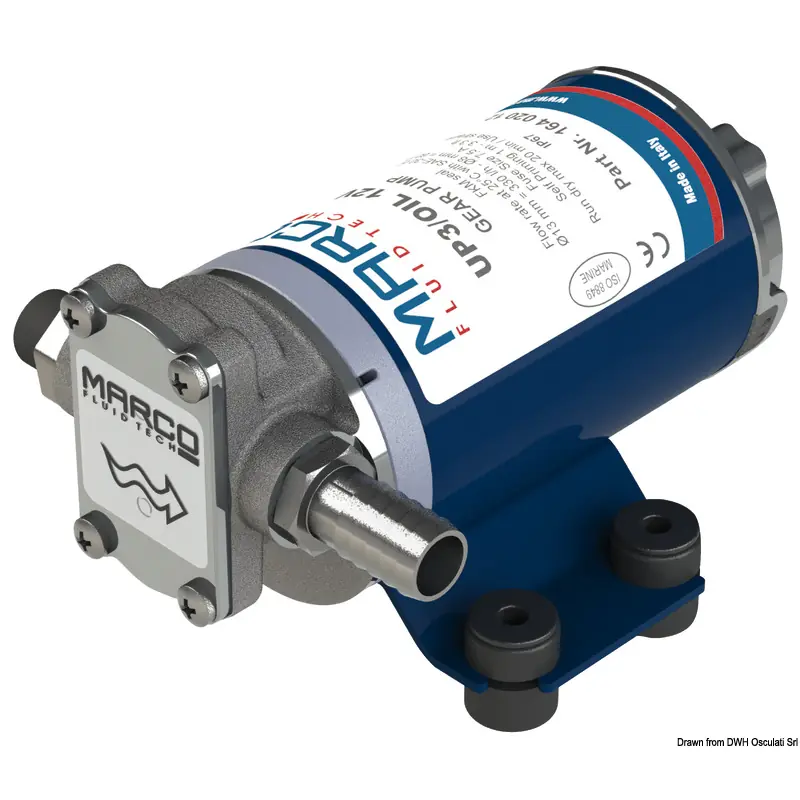

Bronze electric gear pump for transferring oils and viscous fluids. Tapping through the dipstick; fitted with 2 hose adaptors for 14-mm inner diameter hose and additional quick plug-in fitting for the suction pipe. Suitable for draining oil from engine sumps by means of its hose kit. Nickel-plated brass body, stainless steel shaft.
Specifications
| Property | Value |
|---|
| Initials | UP3/OIL |
| V | 12 |
| Flow rate l/min in tubes mm - Ø 6 | 0,3 |
| Flow rate l/min in tubes mm - Ø 8 | 1 |
| Flow rate l/min in tubes mm - Ø 13 | 5,5 |
| Fuse A | 7,5 |
| Self-priming up to m | 1 |
