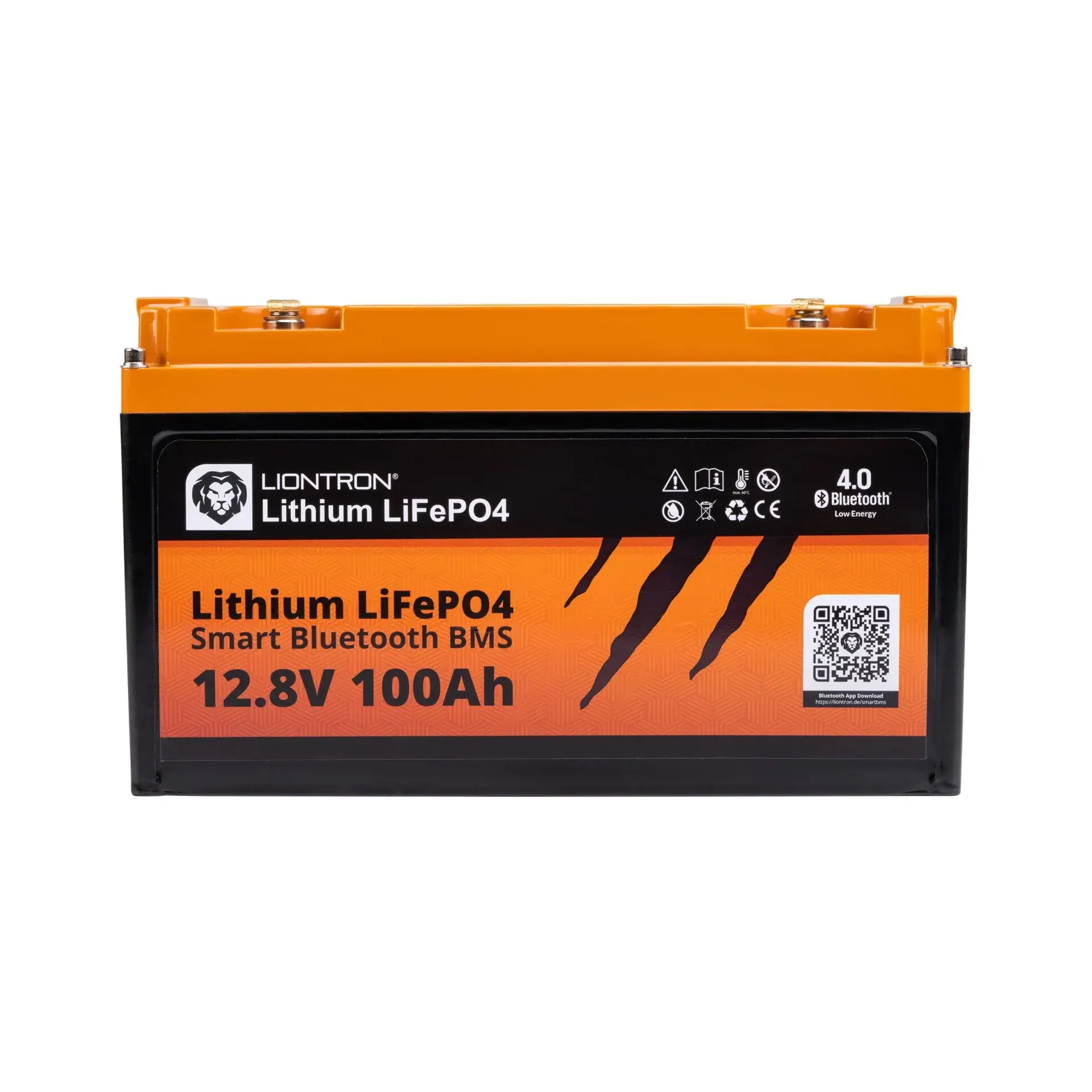

The LIONTRON Lithium Battery is a high-performance energy storage solution designed to replace traditional AGM or lead-acid batteries in boating applications. Leveraging advanced lithium iron phosphate (LiFePO₄) technology, it offers numerous advantages:
- Extended Lifespan: Capable of over 3,000 charge and discharge cycles at 90% depth of discharge, ensuring longevity and reliability.
- Lightweight Design: Approximately 50% lighter than equivalent lead-acid batteries, facilitating easier handling and installation.
- High Discharge Current: Maintains voltage stability under heavy loads, suitable for powering devices like refrigerators, televisions, sound systems, and small appliances on your boat.
- Integrated Battery Management System (BMS): Ensures optimal performance and safety by protecting against overvoltage, undervoltage, and short circuits.
- Bluetooth 4.0 Connectivity: Allows real-time monitoring and management of battery status via the LIONTRON® app on your smartphone.
- Parallel Connection Capability: Enables linking multiple batteries to increase overall capacity, catering to higher energy demands.
- Arctic Version Availability: Features integrated heating elements to maintain cell temperature above freezing, allowing operation in temperatures as low as -30°C.
Technical Specifications
- Voltage: 12.8 V
- Available Capacities: 55 Ah, 80 Ah, 100 Ah, 150 Ah, 200 Ah
- Energy Content: 704 Wh (55 Ah), 1024 Wh (80 Ah), 1280 Wh (100 Ah), 1920 Wh (150 Ah), 2560 Wh (200 Ah)
- Dimensions:
- 55 Ah Model: 350 mm (L) x 163 mm (H) x 171 mm (D)
- 80 Ah Model: 260 mm (L) x 209 mm (H) x 169 mm (D)
- 100 Ah Model: 344 mm (L) x 202 mm (H) x 172 mm (D)
- 150 Ah Model: 355 mm (L) x 262 mm (H) x 233 mm (D)
- 200 Ah Model: 390 mm (L) x 255 mm (H) x 233 mm (D)
- Weight:
- 55 Ah Model: 10.8 kg
- 80 Ah Model: 10.5 kg
- 100 Ah Model: 15.5 kg
- 150 Ah Model: 20.8 kg
- 200 Ah Model: 27.5 kg
- Operating Temperature Range: Standard models: -20°C to +60°C; Arctic versions: down to -30°C
Materials
- Cell Chemistry: Lithium Iron Phosphate (LiFePO₄)
- Enclosure: Shockproof and waterproof with an IP67 protection rating
Compatibility Information
Designed as a direct replacement for AGM and lead-acid batteries, LIONTRON Lithium Batteries are compatible with existing charging systems and inverters without the need for modifications.
