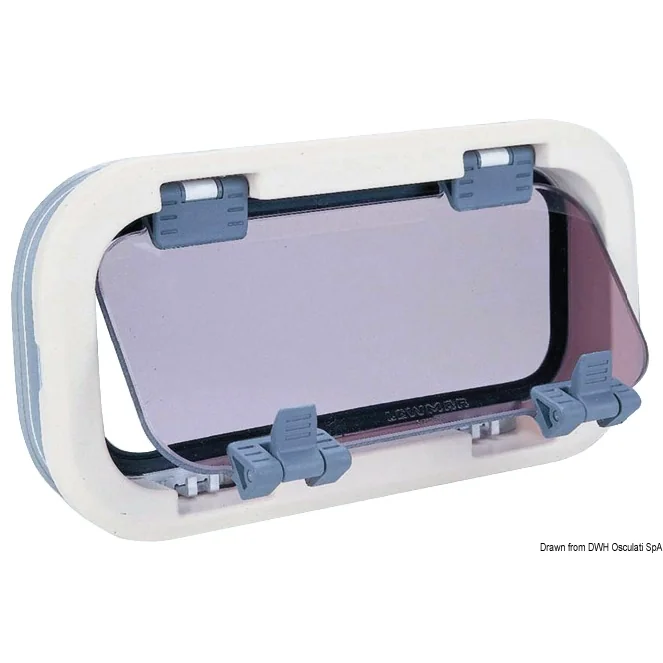

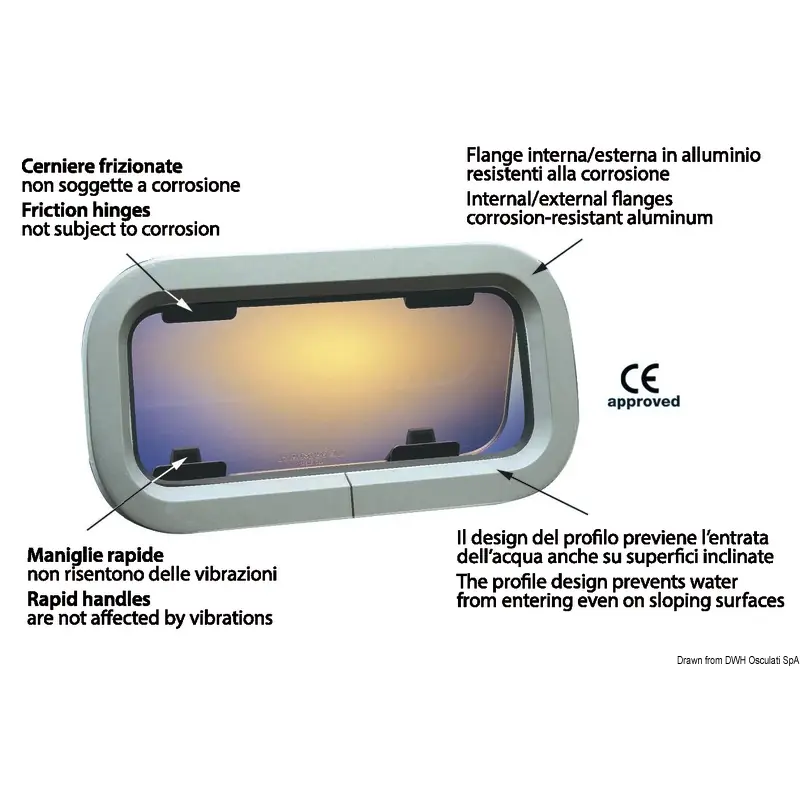

Portlight range with high quality finish and materials. Fitted with built-in friction levers to leave the portlight open in any position, quick and safe locking. Supplied with white ABS trimming ring (ivory colour available upon request), it includes mounting screws and flyscreen, smoked glass. Easy to install by a single person by fastening the trimming ring into the threaded bores. CE-approved for AREA 2.

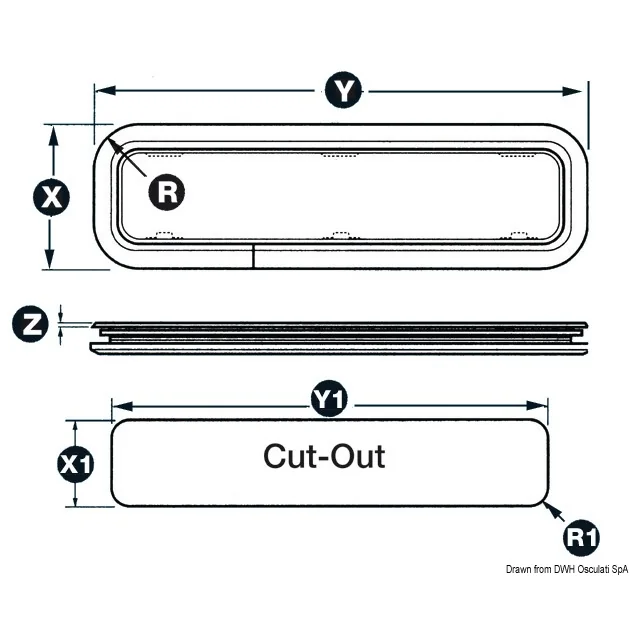

Specifications
| Property | Value |
|---|
| Model | 2 |
| outside mm - Y | 425 |
| outside mm - R | 62 |
| cut size mm - X1 | 156 |
| cut size mm - Y1 | 405 |
| cut size mm - R1 | 52 |
| Acrylic thickness mm | 8 |
