Osculati - LEWMAR Low Profile hatch 20 - 19.410.20

Brand: Osculati
CE-approved low profile hatch with corrosion-resistant aluminum frame for easy deck access.
Manufacturer part number: 19.410.20
GTIN: 743683107078
€414.50 incl tax
i h
Delivery date: 3-5 days

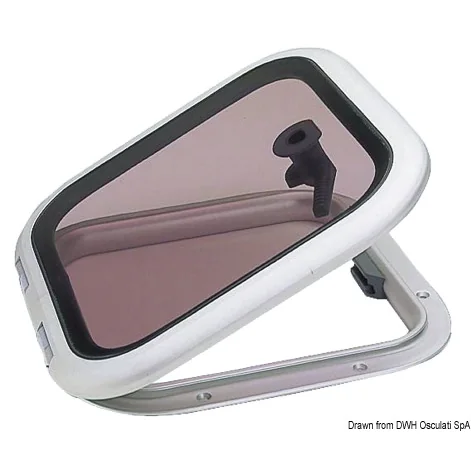

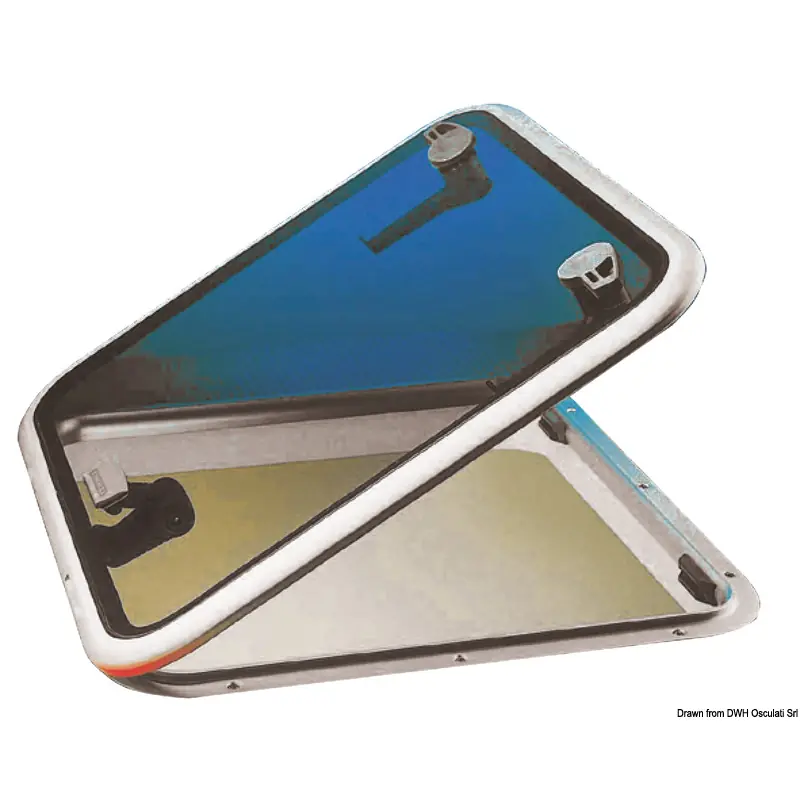

The profile sticks out as little as 25 mm from the deck. CE-approved for AREA 2. External handles allow the hatch to be opened from on the deck, friction levers to hold the lid open in any position up to 95°. Anodized aluminium frame for corrosion resistance and curved upper frame profile for strength. Large quantities available in white or mirror-polished aluminium finish.

Specifications

PropertyValue
Passauomo conportello autoreggente
Size20

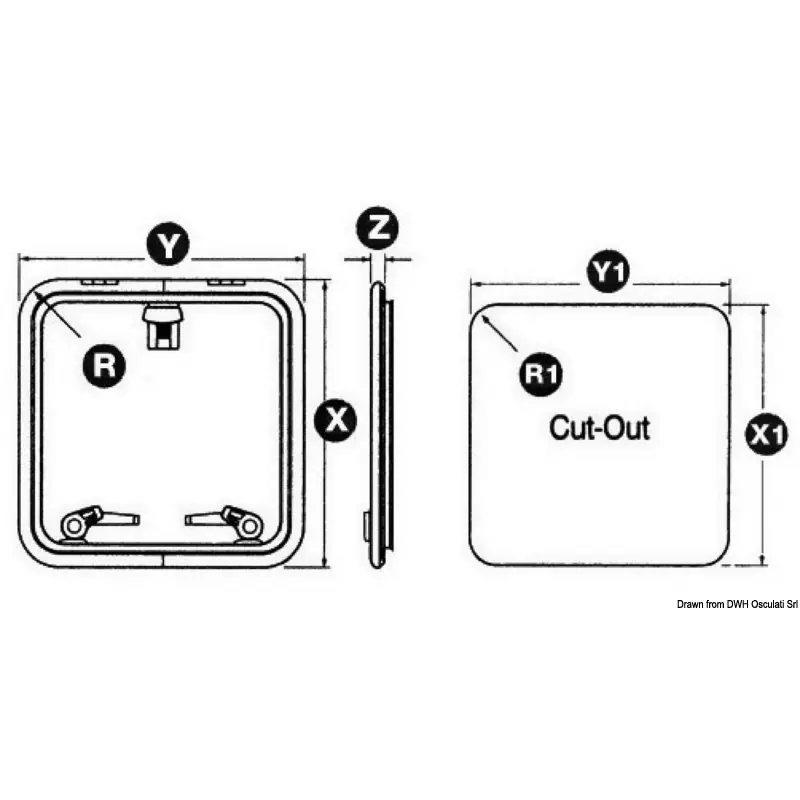

outside mm - X272
outside mm - Y417
outside mm - R72,5
cutting dimensions (vary using the counterflange) mm - X1202
cutting dimensions (vary using the counterflange) mm - Y1347
cutting dimensions (vary using the counterflange) mm - R142,5
Acrylic thickness mm8
Finish counterflange + mosquito net19.413.20
