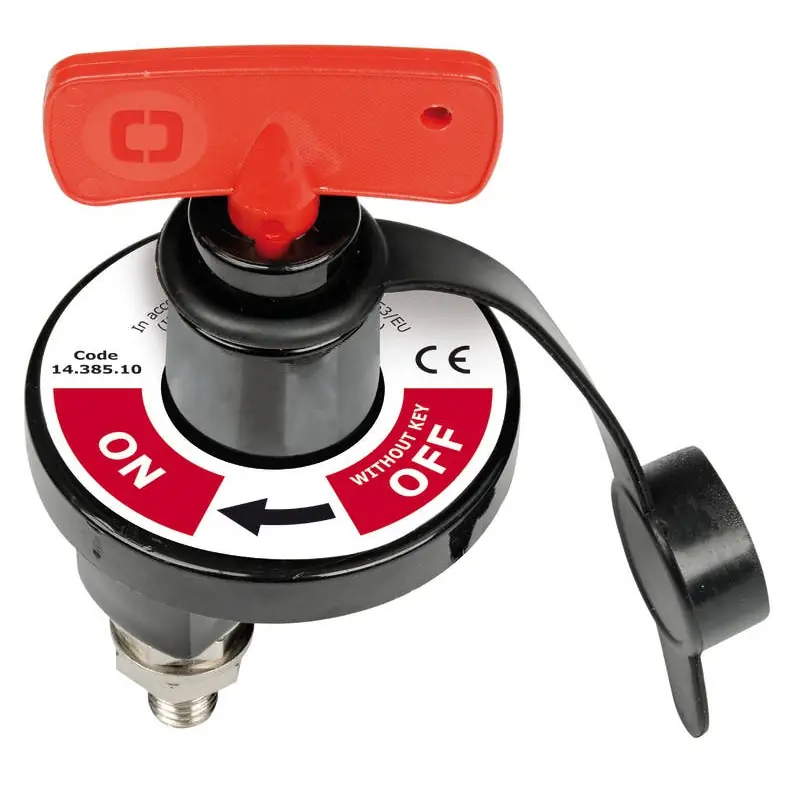

The Heavy Duty MKII Marine Battery Switch by Osculati is a critical component for ensuring electrical safety and reliability on your vessel. Constructed from durable black polycarbonate, this switch is designed to withstand the harshest marine environments. It features a flange mounting system, a watertight PVC cap, and includes two keys to prevent unauthorized use. The switch is CE type-tested and complies with the 2013/53/EU directive (ISO 8846 MARINE - EN 28846), making it mandatory for installation on the positive cable of your boat's electrical system.
- Maximum Capacity: 2500 A for 5 seconds
- Continuous Capacity: 280 A
- Material: Black polycarbonate
- Mounting Type: Flange mounting
- Waterproofing: PVC watertight cap
- Security: Includes two keys to prevent unauthorized use
- Certifications: CE type-tested, compliant with 2013/53/EU (ISO 8846 MARINE - EN 28846)
Technical Specifications:
- Maximum Capacity (5 sec): 2500 A
- Continuous Capacity: 280 A
- Flange Diameter: 66 mm
- Spare Key Part Number: 14.385.34
- Pin Diameter: 10 mm
- Height: 9 cm
- Width: 8 cm
- Length: 9 cm
- Weight: 0.26 kg
- Volume: 648 cm³
Materials:
- Body: Black polycarbonate
- Cap: PVC watertight cap
- Key: Nickel-plated brass splash-proof key
Compatibility Information:
This battery switch is designed for use in marine electrical systems and must be installed on the positive cable to ensure optimal safety and performance. It is compatible with various marine applications requiring a reliable and durable battery switch.
