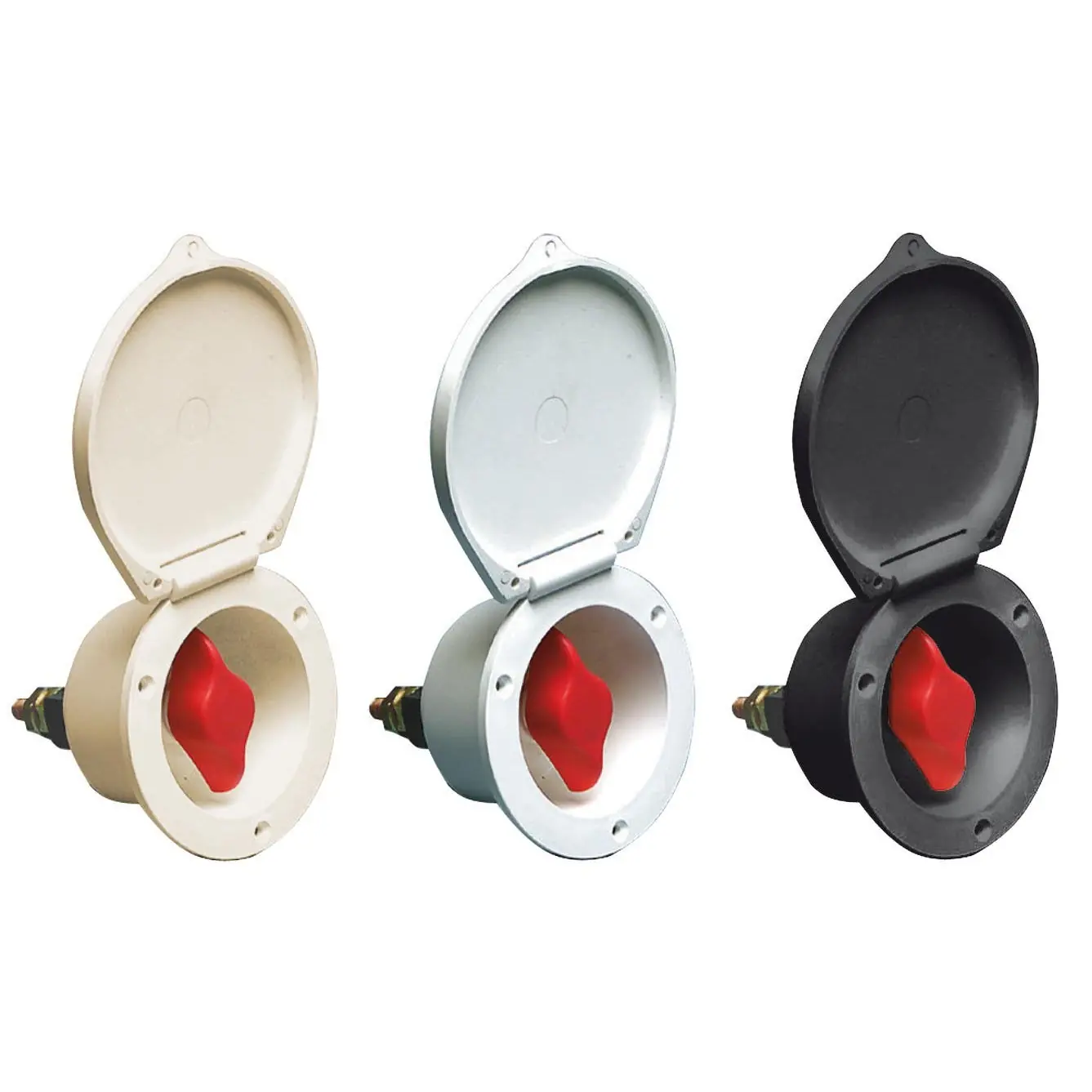

The Osculati Heavy Duty Marine Battery Switch is engineered to ensure the safety and efficient distribution of electrical power in marine environments. This robust device is designed for mounting on the positive cable, providing optimal protection for your electrical system.
- High Capacity: Supports a maximum capacity of 2500 A for 5 seconds and a continuous capacity of 280 A, making it suitable for high-intensity applications.
- Durable Construction: Crafted from black polycarbonate, offering strength and resistance to marine conditions.
- Waterproof Design: Equipped with a watertight PVC cap to protect against moisture ingress.
- Safety Compliance: CE type-tested in compliance with directive 2013/53/EU (ISO 8846 MARINE - EN 28846), ensuring safe and reliable operation.
- Mounting Specifications: Designed for flange fixing with a flange diameter of 66 mm and 10 mm pins, facilitating secure installation.
- Spare Key Availability: Spare keys are available under part number 14.385.33.
Technical Specifications
- Maximum Capacity (5 sec): 2500 A
- Continuous Capacity: 280 A
- Flange Diameter: 66 mm
- Pins: 10 mm
- Dimensions: Height: 10 cm; Width: 10 cm; Length: 10 cm
- Weight: 0.25 kg
Materials
- Body: Black polycarbonate
- Cap: Watertight PVC
- Key: Nickel-plated brass
Compatibility Information
This battery switch is designed for marine applications and is compulsory for mounting on the positive cable, as per ISO 10133 standards. It is suitable for use in various marine vessels requiring high-capacity battery switching.
