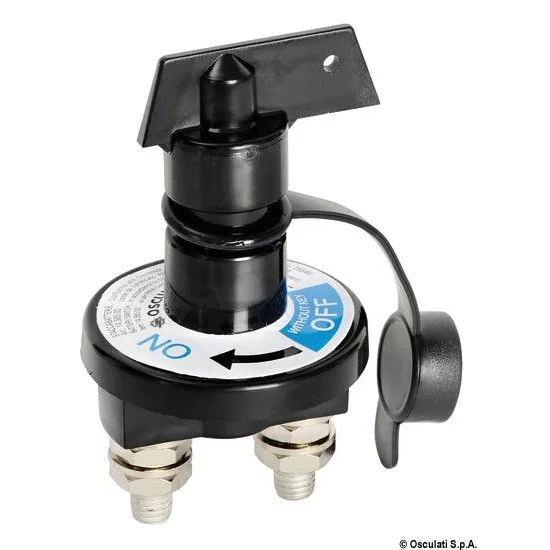

The Heavy Duty Marine Battery Switch by Osculati is a robust device designed to ensure the safety and reliability of your boat's electrical system. It is specifically engineered for installation on the positive cable, providing a secure and efficient means to manage your vessel's power supply.
- High Capacity: Supports a maximum capacity of 2,500A for 5 seconds and 280A for continuous operation, accommodating a wide range of marine electrical systems.
- Durable Construction: Crafted from black polycarbonate, the switch is built to withstand the harsh marine environment, offering longevity and resistance to corrosion.
- Waterproof Design: Equipped with a watertight PVC cap, it prevents water ingress, safeguarding the internal components from potential damage.
- Splash-Proof Key: Features a nickel-plated brass key that is splash-proof, enhancing the switch's durability and reliability in wet conditions.
- CE Certification: Type-tested in compliance with directive 2013/53/EU (ISO 8846 MARINE - EN 28846), ensuring adherence to European safety standards.
Technical Specifications
- Maximum Capacity (5 seconds): 2,500A
- Continuous Maximum Capacity: 280A
- Flange Diameter: 66 mm
- Key Pin Diameter: 10 mm
- Spare Key Part Number: 14.385.33
Materials
- Body: Black polycarbonate
- Cap: PVC (Polyvinyl Chloride)
- Key: Nickel-plated brass
Dimensions
- Height: 10 cm
- Width: 10 cm
- Length: 10 cm
Compatibility Information
This battery switch is designed for installation on the positive cable of marine electrical systems, in accordance with ISO 10133 standards. It is suitable for use with 12V and 24V electrical systems, providing versatility for various boating applications.
