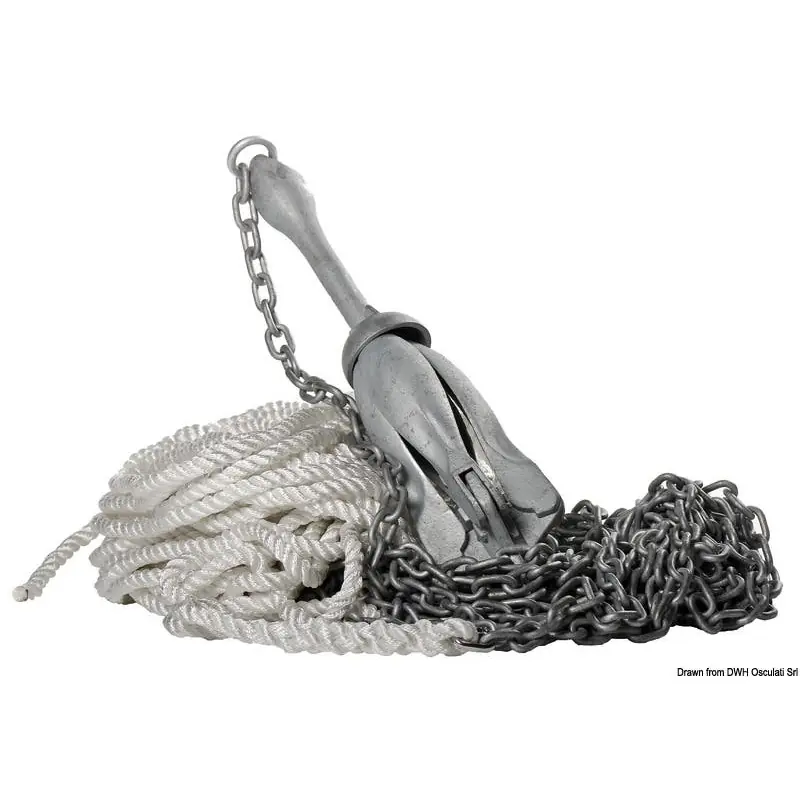

The Grapnel Anchor Mooring Kit by Osculati is a comprehensive solution designed to ensure the stability and safety of your boat during nautical outings. This ready-to-use kit includes:
- Grapnel Anchor: A 4 kg galvanised steel anchor with four prongs, ideal for securing boats on rocky, sandy, or muddy bottoms.
- Galvanised Chain: A 6-metre chain with a 6 mm diameter, suitable for manual retrieval (not compatible with windlasses).
- Braided Rope: A 30-metre rope with a 10 mm diameter, strong and flexible, easily attaching to cleats.
- Galvanised Shackle: A connector between the anchor and chain, facilitating secure attachment.
- Nylon Storage Bag: For convenient storage and transport of the kit components.
Technical Specifications:
- Anchor Weight: 4 kg
- Chain Length: 6 metres
- Chain Diameter: 6 mm
- Rope Length: 30 metres
- Rope Diameter: 10 mm
- Shackle Size: 8 mm
- Recommended Boat Length: Suitable for boats up to 4-6 metres in length
Materials:
- Anchor: Galvanised steel
- Chain: Galvanised steel
- Rope: Braided synthetic fibre
- Shackle: Galvanised steel
- Storage Bag: Nylon
Dimensions and Weight:
- Anchor Dimensions: Length: 470 mm; Width: 380 mm; Height: 110 mm
- Anchor Weight: 3.2 kg
- Chain Dimensions: Length: 6 metres; Diameter: 6 mm
- Rope Dimensions: Length: 30 metres; Diameter: 10 mm
- Shackle Dimensions: 8 mm
- Storage Bag Dimensions: Not specified
Compatibility Information:
This mooring kit is designed for manual retrieval and is not compatible with windlasses. It is recommended for boats up to 4-6 metres in length.
