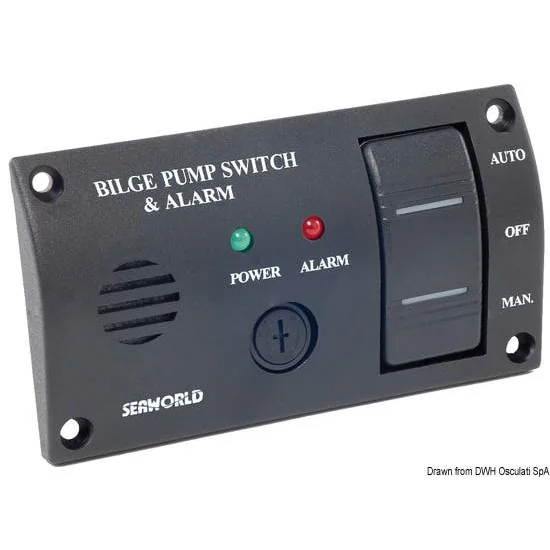

The Osculati Panel Switch with Audible Alarm for Bilge Pumps is a comprehensive control panel designed to manage bilge pump operations effectively. It features a three-position ON-OFF-MANUAL toggle switch, allowing users to operate the pump in automatic, off, or manual modes. The panel includes a control LED for mode indication and a warning light accompanied by an audible alarm that activates when water is detected in the bilge, ensuring prompt response to potential flooding. Additionally, the panel is equipped with a fuse for safety.
- Three-Position Toggle Switch: Enables automatic, off, or manual operation of the bilge pump.
- Control LED: Indicates the current operational mode.
- Warning Light and Audible Alarm: Activates when water is present in the bilge, alerting users to potential issues.
- Fuse: Provides overcurrent protection for the system.
Technical Specifications:
- Voltage Compatibility: 12/24 V
- Ingress Protection Rating: IP43
- Dimensions: 120 mm (length) × 68.5 mm (width)
- Weight: 0.13 kg
- Material: Anodized aluminum
Materials:
- Housing: Anodized aluminum for enhanced durability and corrosion resistance.
Compatibility Information:
This panel switch is suitable for bilge pumps operating at 12/24 V and is compatible with various bilge pump models. It is designed to work with both automatic and manual bilge pumps, providing flexibility in different marine applications.
