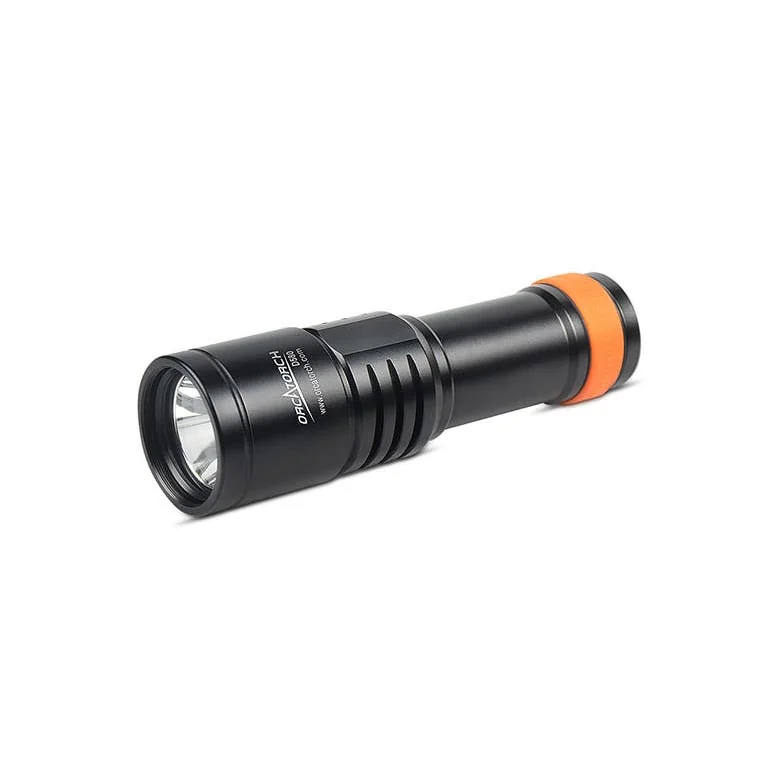

The OrcaTorch D580 is a professional underwater dive light designed for both recreational and technical diving. It offers a maximum output of 530 lumens when powered by a single 18650 Li-ion rechargeable battery, and 480 lumens when using three AAA alkaline batteries. The light features a 6-degree super narrow beam, making it suitable as a primary light for recreational diving and a backup light for technical diving.
- Light Source: CREE LED
- Maximum Output: 530 lumens (with 1 x 18650 Li-ion rechargeable battery)
- Beam Angle: 6 degrees
- Beam Distance: 179 meters on land
- Intensity: 8000 candela
- Impact Resistance: 1.5 meters
- Waterproof Rating: 150 meters depth
- Operating Voltage: 3-4.8V
- Overheat Protection: Intelligent overheat protection
- Reverse Polarity Protection: Prevents damage from incorrect battery installation
- Over-Discharge Protection: Protects the battery from deep discharge
- Construction Material: High-strength A6061-T6 aluminum
- Finish: Mil-Spec Type III hard anodized for durability and corrosion resistance
- Glass Lens: Two-sided coated tempered glass with high water pressure resistance
Technical Specifications
| Battery Mode | Output | Runtime | Beam Distance | Intensity | Impact Resistance | Waterproof | Working Voltage | Dimensions (L x D x H) | Net Weight (excluding battery) |
|---|
| 3 x AAA | 480 lumens | 2h 50m | 179 meters | 8000 cd | 1.5 meters | 150 meters | 3-4.8V | 128.5mm x 27mm x 35.5mm | 123g |
| 1 x 18650 | 530 lumens | 3h 30m | 179 meters | 8000 cd | 1.5 meters | 150 meters | 3-4.8V | 128.5mm x 27mm x 35.5mm | 123g |
Materials
- Body: Aircraft-grade high-strength A6061-T6 aluminum
- Finish: Mil-Spec Type III hard anodized for durability and corrosion resistance
- Lens: Two-sided coated tempered glass with high water pressure resistance
Dimensions
- Length: 128.5 mm
- Tube Diameter: 27 mm
- Head Diameter: 35.5 mm
Compatibility Information
- Battery Options:
- 3 x AAA alkaline batteries (included)
- 1 x 18650 Li-ion rechargeable battery (not included)
In the Box
- OrcaTorch D580 Dive Light
- Battery holder for 3 x AAA batteries
- 3 x AAA alkaline batteries
- Spare O-rings
- Lanyard
- User manual
