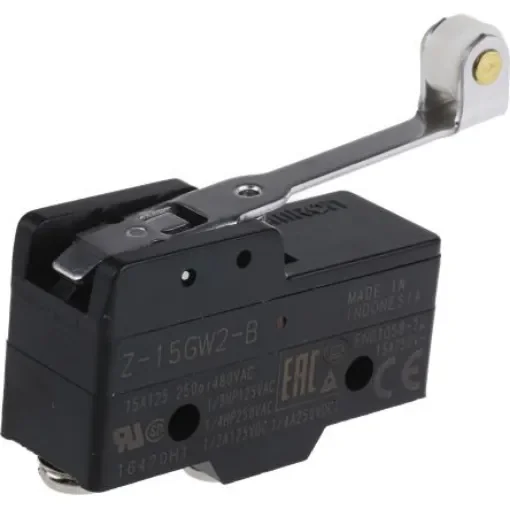

Omron Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max - Z-15GW2-B

Actuator Type = Roller Lever
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP00
Maximum Current = 15A
Maximum AC Voltage = 500V
Maximum DC Voltage = 250V
Series = Z
Action Type = Snap Action
Length = 39.4mm
Standards Met = CE°C
Mechanical Life = 10000000Cycles

UL recognised, CSA. Z15 Series – Basic Switch. The Z series of basic switches from Omron are in plastic housing however still provide the same electrical and mechanical switching capability and lifetime as standard limit switches. These basic switches are ideal for use in uncritical environments or when separately encased in subassemblies. High precision basic switch in a wide range of variations Large switching capacity of 15A with high repeat accuracy Contact configuration: SPDT Contact rating: 250Vac 15A, 14Vdc 15A Contact Gap either 0.5mm (Standard) or 1.8mm (High Capacity)
