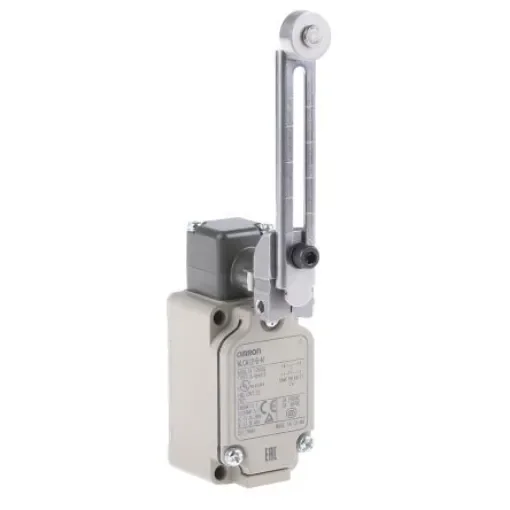

Omron WL Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, DPST, Metal Housing, 250V ac Max, 2A Max - WL-CA12-GN
Durable limit switch with adjustable roller lever and IP67 rating for reliable operation in harsh environments.
Manufacturer part number: WL-CA12-GN
GTIN: 4548583485198
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Adjustable Roller Lever
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP67
Maximum Current = 2A
Housing Material = Metal
Maximum AC Voltage = 250V
Maximum DC Voltage = 48V
Connection Type = G1/2
Series = WL
Action Type = Double Break
Length = 94.1mm
Minimum Operating Temperature = -10°C
Mounting Orientation = SideOperations
UL, CSA. WL Series General Purpose Limit Switch. Oil-tight, waterproof and dustproof cast aluminium body construction to IP67 Two sets of snap action contacts: N/C and N/O Contact rating: 10A (I ;sub>th ;/sub>250Vac) max. 600ac, 250Vdc Four position turret head Operating temperature range: - 10° to +80°C Set position indicator plate for easy maintenance Conduit entry PG13.5
