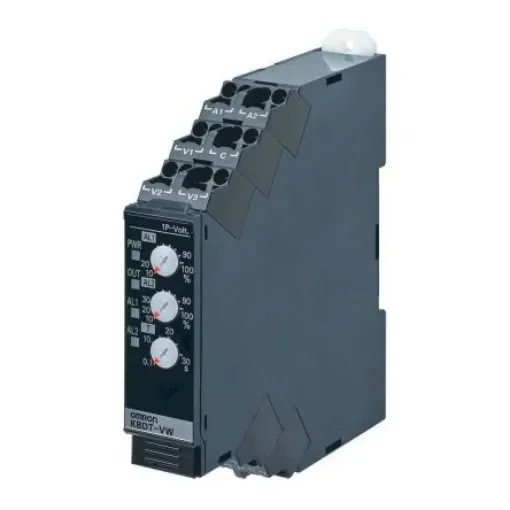

Omron Voltage Monitoring Relay, 1 Phase, SPST, 200 V, 300 V, 600 V, DIN Rail - K8DT-VW3TA
Protect your equipment with the Omron single phase voltage monitoring relay, designed for reliable voltage detection.
Manufacturer part number: K8DT-VW3TA
GTIN: 4548583773806
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Electrical Phase = 1
Voltage Sensing Range = 200 V, 300 V, 600 V
Voltage Sensitivity = Overvoltage, Undervoltage
Mounting Type = DIN Rail
Time Delay = 250ms
Series = K8DT-VW
Minimum Operating Temperature = -20°C
K8DT-VW Single Phase Under/Over Voltage Relay. Omron K8DT-VW single phase voltage monitor relay detects abnormal voltages applies to equipment to protect against equipment failure. Can be used in either overvoltage or undervoltage mode simultaneously. Monitor AC or DC currents with one Relay. Settings for the operating value, hysteresis, and operating time Width of 17.5 mm to reduce space required in panels Push-In Plus Terminal that reduce wiring work Double-insertion holes for crossover wiring (all terminals)
