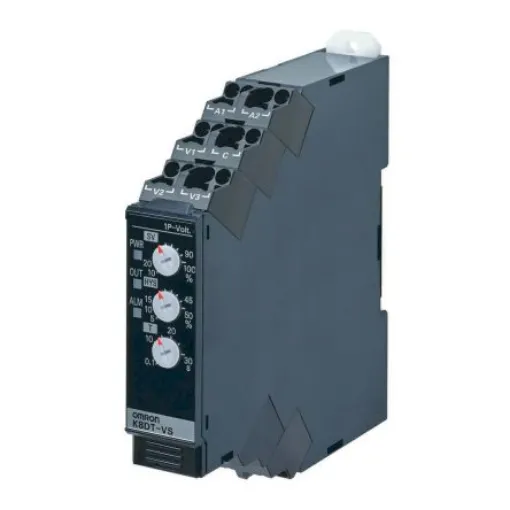

Omron Voltage Monitoring Relay, 1 Phase, SPDT, 10 V, 30 V, 150 V, DIN Rail - K8DT-VS2CD
Protect your equipment with the Omron Voltage Monitoring Relay, designed for reliable overvoltage and undervoltage detection.
Manufacturer part number: K8DT-VS2CD
GTIN: 4548583773738
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Monitoring Application = Voltage
Electrical Phase = 1
Contact Configuration = SPDT
Voltage Sensitivity = Overvoltage, Undervoltage
Mounting Type = DIN Rail
Time Delay = 250ms
Series = K8DT-VS
Height = 90mm
K8DT-VS Single Phase Under/Over Voltage Relay. Omron K8DT-VS single phase voltage monitor relay detects abnormal voltages applies to equipment to protect against equipment failure. Can be used in either overvoltage or undervoltage mode. Monitor AC or DC currents with one Relay. Settings for the operating value, hysteresis, and operating time Width of 17.5 mm to reduce space required in panels Push-In Plus Terminal that reduce wiring work Double-insertion holes for crossover wiring (all terminals)
