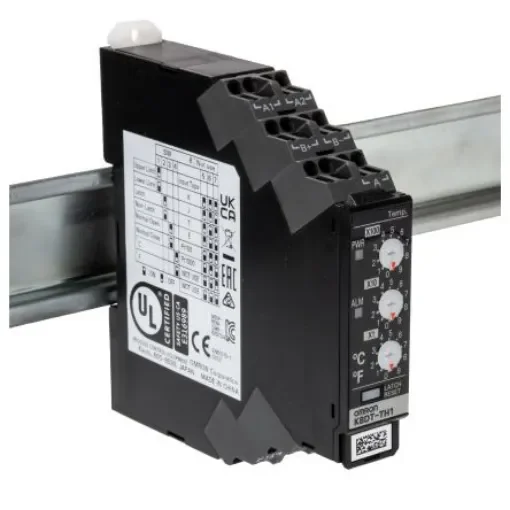

Omron Temperature Monitoring Relay, SPDT, DIN Rail - K8DT-TH1CD

K8DT-TH Self-Latching Temperature Monitoring Relay. • Downsize control panels. • Reduced wiring. • Detects errors in Motors and other equipment. • Use in either over current or under current mode. • Function as an alarm. • Set threshold values. • Alarm output can be set as a relay or transistor output. • Input signal – Voltage, current, water level electrode and temperature (thermocouple or platinum resistance thermometer) can be input. • Lower power consumption. • Side by side mounting is possible. • Long term contact reliability. • Reliable in poor noise environments. • Slim profile 17.5 mm K8DT-TH1CD Self-Latching Temperature Relay. • Power supply 24 V ac/dc. • Thermocouple K, J, T, E. • Platinum-resistance thermometer Pt100, Pt,1000. • SPDT Contact output. • Self-latching. • Prevents heater overheating. • Three rotary DIP switches. • Current capacity 10 A (per pole) • Insertions 50 times. Features and Benefits. • Automatic reset • Green LED Power (PWR) power • Red LED output (ALM) alarm • One SPDT contact relay. • DIN Rail Mounted or Screw Mounted. • Weight 100 g • Case material PC, UL 94 V-0. • Colour N1.5 • Protection IP20 (terminals) What is a Monitoring / Measuring Relay? A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds. Types of Monitoring Relays Available? • Motor protection relays • Temperature monitoring relays • Water level control relays • Voltage • Current
