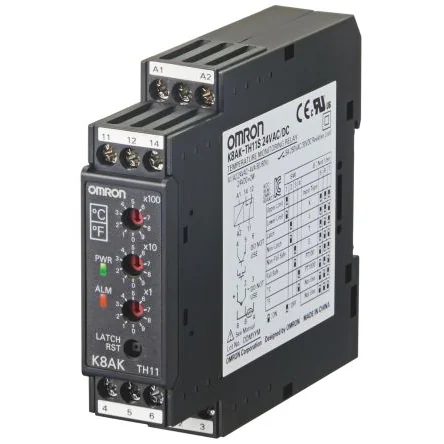

Omron Temperature Monitoring Relay, Single Phase, SPDT, DIN Rail - K8AK-TH12S 100-240VAC

Monitoring Application = Temperature
Electrical Phase = Single
Contact Configuration = SPDT
Mounting Type = DIN Rail
Time Delay = 100ms
Temperature Sensitivity = Overtemperature°C
Series = K8AK-TH
Dimensions = 100 x 22.5 x 90mm

K8AH-TH12S Monitoring Relay. • Prevents and monitors large and abnormal temperature rises. • Slim design only 22.5 mm wide. • Rotary switches makes temperature switching easy. • Universal input for thermocouple • Can be normally closed or normally open. NC/NO. • LED indicator alarm status / Output is retained when the alarm is off. • Self-holding output. K8AK-TH12S 100-240VAC Model. • Monitoring Relay • Thermocouple • Temperature input • 1 Relay • Setting Unit 10°C/°F • Power supply 100 V ac to 240 V ac Features and Benefits. • Power 5 V a max • Sensor input Thermocouple – K, J, T, E, B, R, S, PLII • 1 x SPDT relay (5 A at 250 V ac resistive load) • Rotary switch setting (3 switches) • Green LED Power (PWR) • Red LED Relay output (ALM) • DIN Rail Mounted • Weight 160 g • Case material PC and ABS, UL 94 V-0 • Colour N1.5 • Protection IP20 What is a Monitoring / Measuring Relay? A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds. Types of Monitoring Relays Available? • Motor protection relays • Temperature monitoring relays • Water level control relays • Voltage • Current
