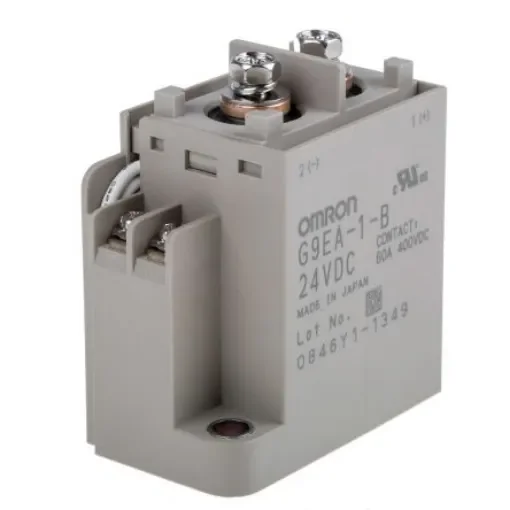

Omron Surface Mount Power Relay, 24V dc Coil, 100A Switching Current, SPST - G9EA-1-B DC24
High-performance Omron relay with 100A switching current and 24V DC coil for reliable applications.
Manufacturer part number: G9EA-1-B DC24
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = SPST
Mounting Type = Surface Mount
Switching Current = 100A
Number of Poles = 1
Latching = No
Terminal Type = Screw
Length = 73mm
Coil Resistance = 115.2O
Minimum Operating Temperature = -40°C
Omron Non-Latching RelayThe Omron G9EA series surface mount non-latching relay has a contact configuration of SPNO. It is actuated with 24VDC coil voltage and 100A switching current. This DC power relay is capable of interrupting high capacity DC loads while enabling compact, low-noise and safe applications. It has a switching and driving section that are gas-injected and hermetically sealed, allowing the relay to interrupt high-capacity loads.Features and BenefitsCapable of switching 400V 60A DC loads and interrupting 600A at 300VDC (maximum) Coil resistance is 115.2ohm Downsizing and optimum design allow no restrictions on the mounting direction Screw terminal typeCertificationsCSA certified UL approved
