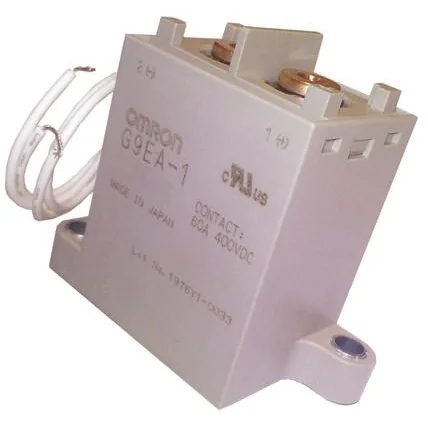

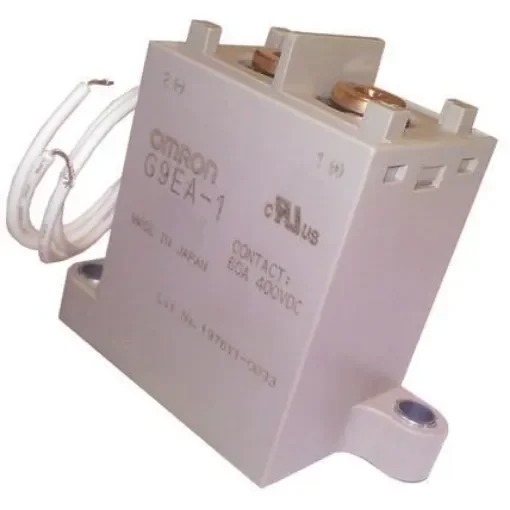

Omron Surface Mount Power Relay, 12V dc Coil, 100A Switching Current, SPST - G9EA-1 DC12
Reliable 12V DC power relay with 100A switching capacity for efficient surface mount applications.
Manufacturer part number: G9EA-1 DC12
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = SPST
Mounting Type = Surface Mount
Switching Current = 100A
Number of Poles = 1
Latching = No
Terminal Type = Screw
Length = 73mm
Coil Resistance = 28.8O
Minimum Operating Temperature = -40°C
UL; CSA. G9EA Series. DC power relays capable of interrupting high capacity DC loads while enabling compact, low-noise, safe applications Gas injected and hermetically sealed construction Capable of switching 400V 60A DC loads and interrupting 600A at 300Vdc max Dimensions; L73xW36xH67.2 mm
