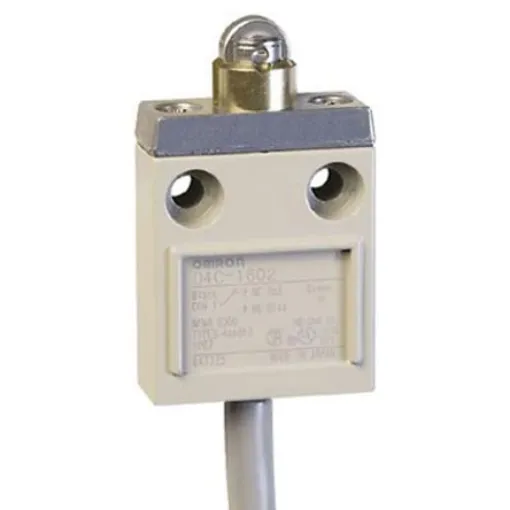

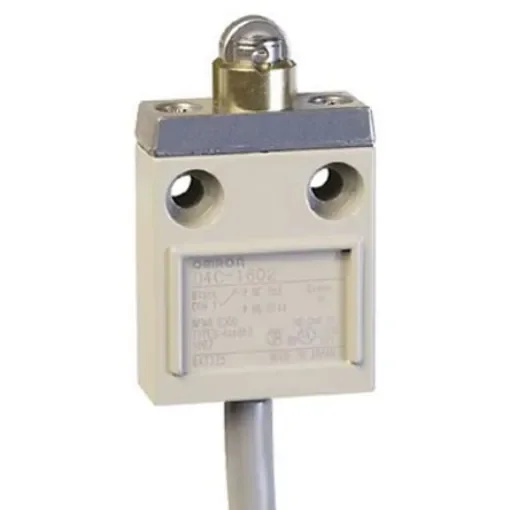

Omron Roller Plunger Limit Switch, 4NO/2NC, IP67, SPDT, 250V ac Max, 5A Max - D4C-1602
Reliable Omron Roller Plunger Limit Switch with SPDT configuration and IP67 rating for sensitive equipment.
Manufacturer part number: D4C-1602
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Roller Plunger
Pole and Throw Configuration = SPDT
Normal State Configuration = 4NO/2NC
IP Rating = IP67
Maximum Current = 5A
Maximum AC Voltage = 250V
Maximum DC Voltage = 250V
Action Type = Snap Action
Minimum Operating Temperature = -10°C
Mounting Orientation = Front
D4B - N Safety Interlock Switches. The D4B-n Series limit switches have been designed for sensitive equipment where accurate switchi9ng is required. The snap-action contacts provide this accurate switching with safe operation via direct drive positive opening mechanism. They come with two sets of contacts, one NC for safety circuits and the other NO for control circuits. Rated insulated voltage: 600 Vac Operating temperature range: -40 to +80 °C with no icing (-25 to 80 °C for the flexible-rod type) Degree of protection: IP67
