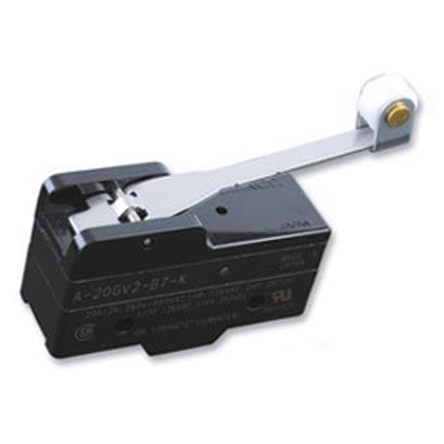

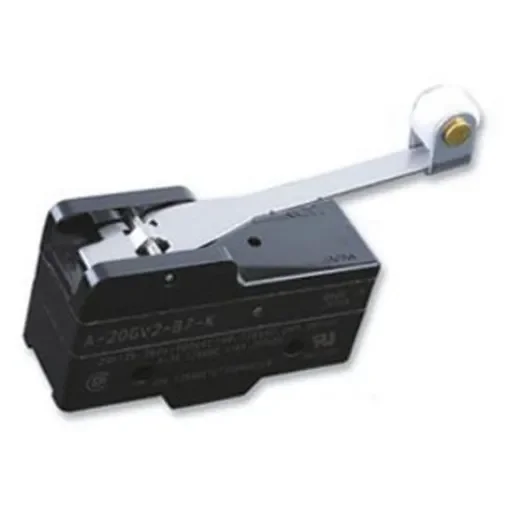

Omron Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max - A-20GV2-B7-K
Reliable Omron roller lever limit switch with SPDT configuration and 20A capacity.
Manufacturer part number: A-20GV2-B7-K
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Roller Lever
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP00
Maximum Current = 20A
Maximum AC Voltage = 500V
Maximum DC Voltage = 250V
Connection Type = Screw
Action Type = Snap Action
Length = 49.2mm
Minimum Operating Temperature = -25°C
Mounting Orientation = Panel, SideOperations
A20 Series. The A20 Series of Switches from Omron. High-capacity switch capable of handling 20A loads with inrush currents up to 75A Directly switches such loads as motors, halogen lamps and solenoids Same shape as OMRON Z series (except pin plunger) Contact Form: SPDT Terminal: Screw IP00 Rated
